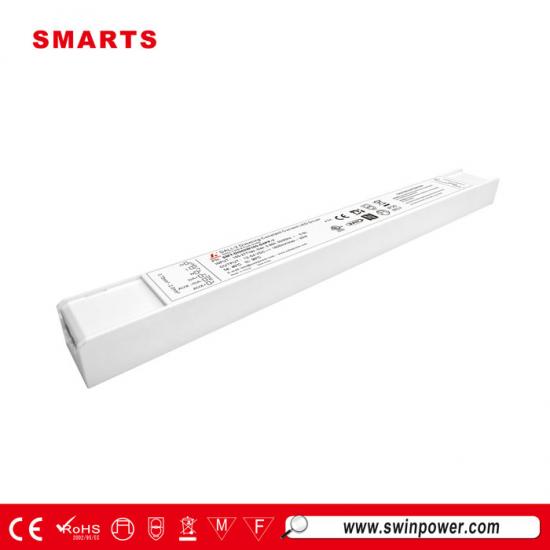

Plastic ip20 160ma-1600ma DALI-2 D4I dimming constant current 60W led driver for sale
DALI-2 & PUSH D4I dimmable led power supply achieves 0.1%~100%, adopts NFC smart programming module, users can easily read, write and program power data through NFCAPP. With 7-year warranty
Specification
| Model | SMT-DI060W160-D4PP | ||||||||||
| Certificate | UL / FCC / CE / RoHS / Reach | ||||||||||
| Output | Rated current | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 |
| DC Voltage | 12-54 | 12-54 | 12-54 | 12-54 | 12-54 | 12-50 | 12-46 | 12-43 | 12-40 | 12-38 | |
| Rated power | 37.8 | 43.2 | 48.6 | 54 | 59.4 | 60 | 59.8 | 60.2 | 60 | 60.8 | |
| Voltage Tolerance | ±0.5V | ||||||||||
| Voltage Regulation | ≤0.5% | ||||||||||
| No-load voltage | 60Vmax | ||||||||||
| Load Regulation | ≤1% | ||||||||||
| Input | Voltage Range | 100-277VAC | |||||||||
| Frequency Range | 47 - 63Hz | ||||||||||
| Power Factor @ full load | 0.998@120VAC 60Hz 0.972@230VAC 50HZ 0.957@277VAC 60Hz | ||||||||||
| THD(Typ.) @ full load | 5.18%@120VAC 60Hz 16.31%@230VAC 50HZ 15.42%@277VAC 60HZ | ||||||||||
| Efficiency @ full load | 88.4%@120VAC 60Hz 90.1%@230VAC 50HZ 89.7%@277VAC 60HZ | ||||||||||
| No load power (Max) | 0.68W@120VAC 60Hz 0.80W@230VAC 50HZ 0.95W@277VAC 60HZ | ||||||||||
| Standby power (Max) | 0.21W@120VAC 60Hz 0.29W@230VAC 50HZ 0.42W@277VAC 60HZ | ||||||||||
| AC Current (Max.) | 0.75A | ||||||||||
| Inrush Current (Typ.) | 28.7A, 204us@50%Ipeak120V 55.2A, 98us@50%Ipeak230V 66.0A, 220us@50%Ipeak277V | ||||||||||
| Leakage current | <0.5mA | ||||||||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| Over temperature |
Ambient temp.Over 45±5℃, recovers automatically after temp. drops. Ambient temp. over 50±5℃, output current will be reduced to 50%; Ambient temp.over 60±5℃, output current will be reduced to 0%; |
||||||||||
| Environment | Working TEMP | -40~+60℃ (see below derating curve) | |||||||||
| Working Humidity | 20 -90%RH non-condensing | ||||||||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | ||||||||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||||||||
| Vibration | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes | ||||||||||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) | |||||||||
| Withstand voltage | I/P-O/P:3.75KVAC (EU) | ||||||||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||||||||||
| EMC Emission | EN55015 EN61000-3-2,3(EU) | ||||||||||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||||||||||
| Power supply | Auxiliary output | 21.6V-26.4V/125mA (auxiliary power supply loaded state) | |||||||||
| power supply | 21.6V-30V (auxiliary power supply unloaded state) | ||||||||||
| DALI bus power supply | 22V/55mA(Max) | ||||||||||
| Others | Net Weight | 0.3KG | |||||||||
| Dimension | 342*32.8*24.1mm (L*W*H) | ||||||||||
| Packing | ****pcs /CTN | ||||||||||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. | ||||||||||
| 2. To extend the driver's using life , please reduce the loading at lower input voltage . | |||||||||||
 |
 |
 |
 |

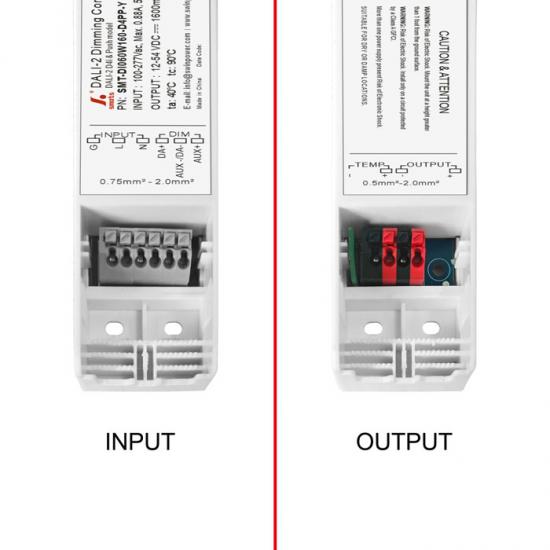

Mechanical Specification
1.Input with Gray terminals 6P: Live Wire AC (L), Neutral Wire AC(N) .
2.Output LED SEC with Red/Black terminals 4P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
3.Dimming Gray terminals 6P: when DALI dimming, signal dimming DA+, DA-/PUSH N and PUSHS L connected to the BUS of the DALI Master.
4.Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
5.This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Warm tips:
1.Suggested wire diameter: Input 0.2mm2-1.5mm2/AWG24-16.
Dimming Operation
Connect the DALI signal cable to the DALI bus of the controller (DALI Master), and after the controller scans and assigns an address, the power supply can be dimmed and controlled.
Attention:
The models with D4I and D4P in the model names all have DALI bus power supply function. If the bus power supply function is enabled (default off, can be enabled in NFC or upper
computer),DALI dimming will come with a voltage of 16-20V, without the need for external power supply. If the power supply function is turned off, an additional DALI power
supply (DALI Power) is required.
