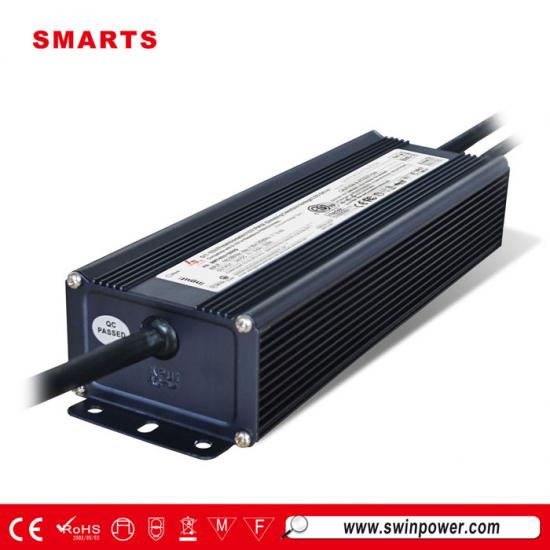

PWM dimmable led driver 1400mA 100W constant current led power supply
100W constant current led power supply is control by 0-10v dimming.the input voltage range is 100-265vAC,the wattage range is 15w-230w,Can be used with Lutron 0-10V dimmer.
Features
- VoltageRange: 100-265VAC
- Built-in PFC function, PF>0.9
- Efficiency>87%
- Protections:short circuit/over current/over voltage/over temperature
- Cooling by free air convection
- IP67 design for indoor or outdoor installation .
- Dimming function:0-10V/10V PWM or potentiometer dimming.
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Suitable for dry/damp/wet locations
- Dimming range: 0-100%
- 5 years warranty
- ETL/cETL, FCC, ROHS, CE approval
Description
|
Model |
SMT-100-1050CD |
SMT-071-1400CD |
SMT-060-1750CD |
SMT-050-2000CD |
SMT-042-2400CD |
SMT-40-3000CD |
||
|
Output |
DC Current |
1050mA |
1400mA |
1750mA |
2000mA |
2400mA |
3000mA |
|
|
|
Current Accuracy |
±5% |
||||||
|
|
Voltage Range |
55-100V |
45-71V |
40-60V |
30-50V |
25-42V |
20-40V |
|
|
|
Rated power |
105W |
100W |
100W |
100W |
100W |
120W |
|
|
Input |
Voltage Range |
100～265VAC |
||||||
|
|
Frequency Range |
47～63HZ |
||||||
|
|
PF |
PF≧0.96/110V/PF≧0.98/220V |
||||||
|
|
Full Load Efficiency（Typ）） |
>87%(110,220V) |
>87%(110,220V) |
>87%(110,220V) |
>87%(110,220V) |
>87%(110,220V) |
>88%(110,220V) |
|
|
|
AC Current (Typ.） |
1.08A/220VAC 0.504A/220VAC |
1.10A/110VAC 0.522A/220VAC |
1.12A/110VAC 0.537A/220VAC |
1.122A/110Vac 0.545A/220Vac |
1.20A/110VAC 0.560A/220VacC |
1.24A/110VAC 0.610A/220Vac |
|
|
|
Leakage current |
﹤0.5mA |
||||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
|
Over Loading |
≤120% |
||||||
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||||
|
Environment |
Working TEMP. |
-40～+60℃ |
||||||
|
|
Working Humidity |
20～95%RH non-condensing |
||||||
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||||
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||||
|
|
Vibration |
10～500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes |
||||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
||||||
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||||
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100M Ohms/500VDC/25℃/70%RH |
||||||
|
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥60%load) |
||||||
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level Criteria A |
||||||
|
Others |
Weight |
1.2Kg/pcs |
||||||
|
|
Size |
230*70*60mm（L*W*H） |
||||||
|
|
packing |
330*280*176mm 10PCS /CTN |
||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||||
 |
 |
 |
 |
