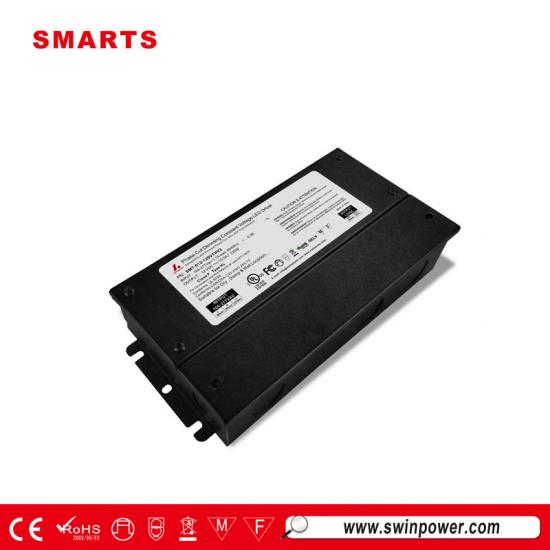

PWM output dimmable led lighting power supply 120w 10 amp 12v
Strong compatibility, flicker-free dimming triac dimmable power supply 120w, together with metal housing, suitable for dry, damp, wet location.SMARTS's 120W led dimmer power supply complies with international LED power safety standards. It can be used for lamps of different brands in many countries, such as fulham's LED modules and Batuled's LED downlight.
Specification
|
model |
SMT-012-120VTH (1.0 version) SMT-012-120VTHV2 (2.0 version) |
SMT-024-120VTH (1.0 version) SMT-024-120VTHV2 (2.0 version) |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±2% |
|
|
|
Rated current |
10.00A |
5.00A |
|
|
Rated power |
120W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
0.99@120VAC 0.96@277VAC |
0.98@120VAC 0.96@277VAC |
|
|
Full Load Efficiency（Typ.） |
>82% |
>83% |
|
|
AC Current（Typ.） |
1.7A@100VAC |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
|
Over voltage |
≦140VAC(100~130V) , ≦270VAC(170~277V) |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750, UL1012 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
|
|
Others |
Weight |
1.3Kg |
|
|
|
Size |
1.0 version: 220*93*41mm (L*W*H); 2.0 version: 220*94.5*40mm (L*W*H) |
|
|
|
packing |
329*279*176mm , 10PCS/ctn |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
Mechanical Specification
Input power cord: AC (L), (N), and earth wire (G)
Output Red is（DIM+）,Black is（DIM-）
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
