UL certified slim size 12v 24v power supply 30w 36w dimmable led driver transformer for lighting

As the power led driver market matures, there is an increasing need to control the light output of LED fixtures. TRC offers a wide selection of dimming options including Triac, ELV, 0-10V (Dim to Off), 1-10V and PWM,Can be used with Schneider SBD315RC dimmer
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-030VDSP
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12V
  • Output Current:

    2.5A
  • Working Mode:

    Constant voltage
  • Dimming mode:

    0-10v dimming
  • Size:

    262mm*32mm*20mm
  • Certification:

    UL,Class2.Classp
Products description

UL certified slim size 12v 24v power supply 30w 36w dimmable led driver transformer for lighting


Our dimmable led power supply series are commonly used in many LED indoor and outdoor lighting applications such as, sunco LED horticultural lighting, LED residential lighting, LED street lamps, LED signage, LED decorative and architectural lighting, LED theatre/stage lighting, LED embedded lighting and LED large screen displays.


 Features


·Output constant voltage

·Input voltage range 100-277VAC

·UL, cUL listed, Class 2, Class P standard approval

·Built-in PFC function / Efficiency > 80% / PF> 0.99

·Dimming range: 0~100%

·Protections:short circuit/over voltage/over heat

·IP20 plastic case design for indoor dry, damp environment installations

·Cooling by free air convection

·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty


 Specification


model

SMT-012-030VDSP

SMT-024-030VDSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.99/110V ;  PF≧0.98/277V

Full Load Efficiency(Typ.)

>79%

>81%

THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC

AC Current(Typ.)

0.5A

Inrush Current(Typ.)

5A, 50%, 960us @120VAC;   13A, 50% , 1ms @277VAC

Leakage current

﹤0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.20Kg

Size

260*32*20mm (L*W*H)

packing

290*270*160mm , 50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

  laebl   30w 36w dimmable led driver


Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver



 Mechanical Specification


12 volt power supply for led lights

Ø Input terminals "Black" and "White" to connect to AC L and N.

Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

Ø Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.



 Derating Curve



12 volt power supply for led lights

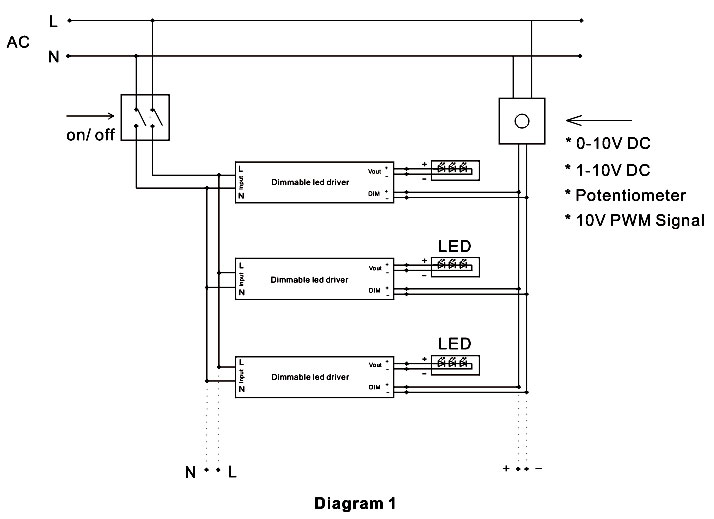

 Connecting Diagram

12 volt power supply for led lights

12 volt power supply for led lights


12 volt power supply for led lights
