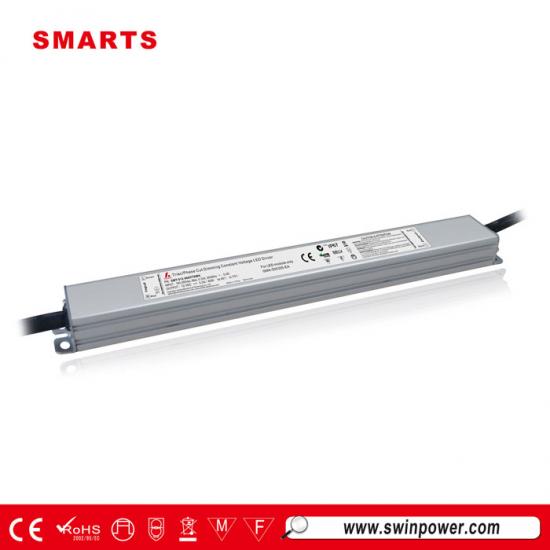

This model 60w slim size triac dimmable LED driver have short circuit/overload/over temperature protection.Through 100% full load burn-in test,Can effectively protect Nilight LED Headlights and make the lamp life longer. A series of slim shape triac dimmable led driver divide 12v triac dimmable constant voltage led driver & 24v triac dimmable constant voltage led driver.
Destriptiom
model
SMT-012-060VTSWH
SMT-024-060VTSWH
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
5.0Amp
2.5Amp
Rated power
60W
60W
Voltage Regulation
±0.5%
Load Regulation
±1%
Input
Voltage Range
180-265 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.95
Full Load Efficiency（Typ.）
>83%
>84%
AC Current（Typ.）
0.5A/100VAC / 0.13A/277VAC
Inrush Current（Typ.）
6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC
Leakage current
<0.74mA/110VAC; ﹤0.25mA/277VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P: 2KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,,11, Alight industry level
Others
Weight
0.45Kg
Size
300*32*20mm (L*W*H)
packing
50PCS/CTN
Laebl
 |
 |
 |
 |
Mechanical Specification
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（DIM+）,Black is（DIM-）
Derating Curve
Connecting Diagram
Simple Connection Diagram
