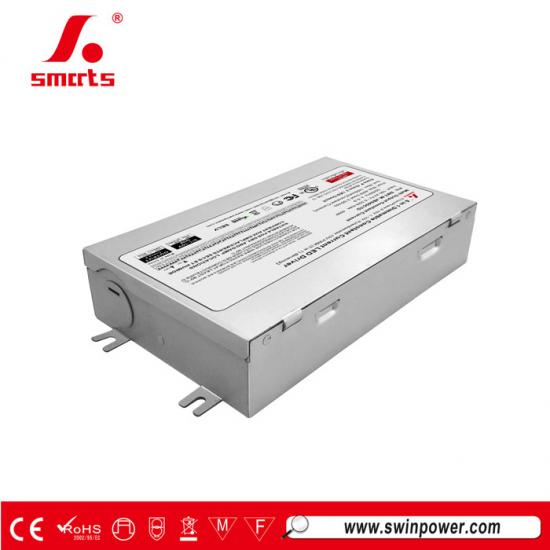

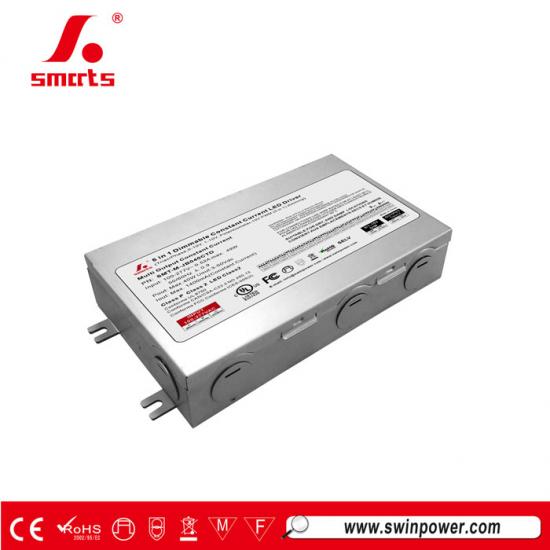

100 277vac pwm dimmable constant current 40W 300MA-1400MA led driver

100 277vac pwm dimmable constant current 40W 300MA-1400MA led driver

triac & 0 10v dimmable Multi-output current 40W led power supply Built-in DIP switch adjustable, output current between 300ma-1400ma for users to switch. Dimming range between 0-100% smooth and flicker-free. Comply with global safety lighting regulations, passed UL certification, mainly sold to North America

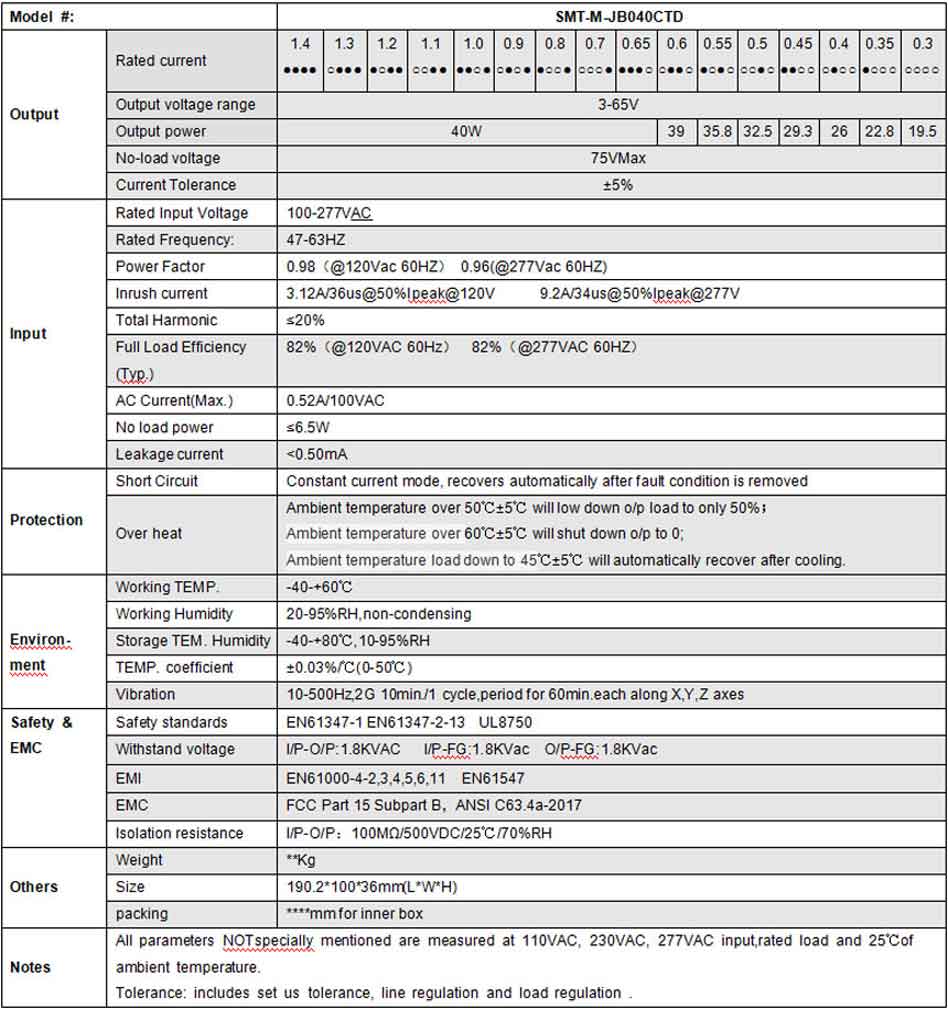

  Specification

  Mechanical Specification

Input terminals "Black" and "White" to connect to AC L and N.

Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

 Dimming Operation
