12v 200-240 Volt 100w Led Strip Light Lamp Waterproof Power Supply

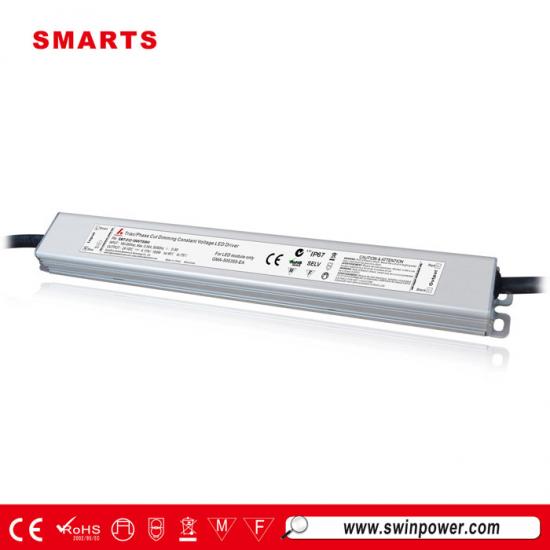

Smarts Electronics' SMT-012-100VTSWH is 12vdc 100w triac dimmable constant voltage led power supply with SAA,CE,RHS approval.it's 7 years warranty,Longer warranty period than tagra led driverThis led strip light power supply features an IP67 rated design, making it suitable for indoor and outdoor use and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.
Features
·Output constant voltage
·Input voltage range 200-240VAC
·CE approval
·Built-in PFC function / Efficiency > 83% / PF> 0.98
·Dimming range: 0~100% / load:10~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
|
model |
SMT-012-100VTSWH |
SMT-024-096VTSWH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Input |
Voltage Range |
200-240 VAC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF≥0.99/200V ; PF≥0.98/240V |
||
|
Full Load Efficiency(Typ.) |
>83% |
>84% |
|
|
AC Current(Typ.) |
1.10A/200VAC / 0.43A/240VAC |
||
|
Inrush Current(Typ.) |
9.2A, 50%, 1ms@200VAC / 26.4A, 50%, 780us@240VAC |
||
|
Leakage current |
<0.50mA/200VAC; <0.13mA/240VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P: 2KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, Alight industry level |
||
|
Others |
Weight |
0.55Kg |
|
|
Size |
330*32*23mm (L*W*H) |
||
|
packing |
50PCS/CTN |
||
|
Notes |
1. What is the different of IP67 and IP68?
IP67 refers to "Product has protection against dust and temporary immersion in water"--Two models you purchased can attain the IP67 rating.
P68 refers to "Product has protection against dust and continuous immersion in water"--Two models you purchased can not attain the IP68 rating.
|
||
| Label |
 |
||
 |
 |
 |
 |
Mechanical Specification
Dimming Operation
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
