12vdc 1amp 12w led constant voltage bulbs triac dimmable led driver

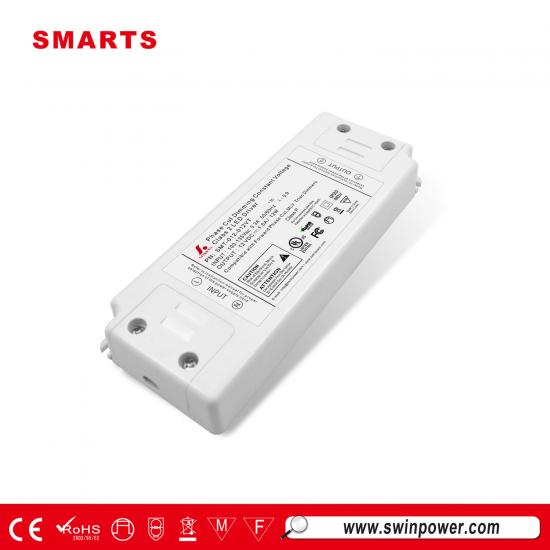

The SMT-012-012VT is 12vdc 1 amp 12w IP20 triac dimmable constant voltage led driver,The input is 100-130vac with 5 years warranty.this UL,CE,ROHS,FCC,Class 2,Class P,type HL approval.
Product Description
| input Channel | leading edage and tailing eadge dimmers | |||||||||||
| SMT-012-012VT | SMT-024-012VT | |||||||||||
| Single Output features | Constantvoltage | 12vDC | 24vDC | |||||||||
| output current | 1Amp | 0.5Amp | ||||||||||
| output power | 12watt | 12watt | ||||||||||
| Ripple & Noise | 250mV | |||||||||||
| Current Regulation | ±3% | |||||||||||
| Starting time | 1000mS/130Vac, 3000mS/100Vac | |||||||||||
| Input | Voltage range | 100Vac-130Vac | ||||||||||
| Frequency range | 47Hz-63Hz | |||||||||||
| Power factor | PF>0.90/130Vac,PF>0.91/100Vac | |||||||||||
| Efficiency | 87%/100Vac , 88%/130Vac | |||||||||||
| Inrush Current | 20A/100Vac, 40A/130Vac | |||||||||||
| Leakage Current | <1mA/130Vac | |||||||||||
| Protection | short circuit | |||||||||||
| protection | ||||||||||||
| Protection mode:Single Protection,Hiccup ,recovery after the fault removed. | ||||||||||||
| Protection mode:Limit highest voltage, recovery after the fault removed. | ||||||||||||
| physical size: |
140*45*28mm |
|||||||||||
| Over temperature | 105oC±5 oC ( Internal radiator's temperature) | |||||||||||
|
1. can you please confirm lead time?
Answer: Lead time for sample order takes about 7 working days. It takes about 12-15 working days for production order. It depends on the quantities. |
||||||||||||
 |
 |
 |
 |
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- 8Hrs and 100% full load burn-in test.
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
