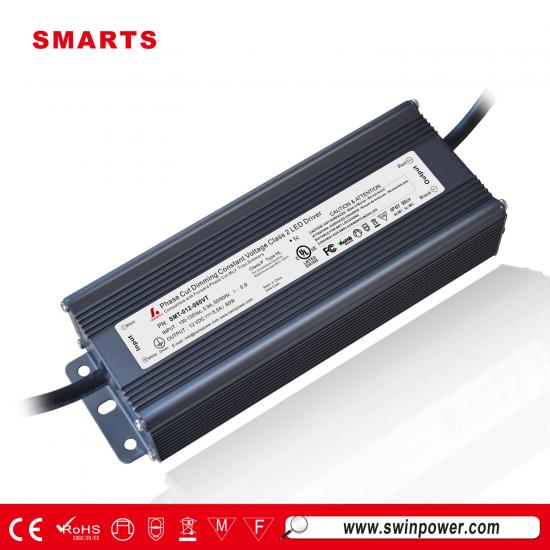

LED panel light driver 12v 60w triac dimmable constant voltage led power supply
|
phase cut dimming power supply 12v 5a 60w triac dimmable driver are UL ROHS FCC Certification, constant voltage working mode, aluminum cover, Compatible with Forward phase, Reverse phase, Triac, ELV Dimmers.Suitable for Green LED Lighting Neon LED and moving sign applications. |
Specification
|
model |
SMT-012-060VT |
SMT-024-060VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
5.00A |
2.50A |
|
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
90~135V AC/170~265V AC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF≧0.78/110V,PF≧0.80/170V,PF≧0.81/220V,PF≧0.82/265V |
||
|
Full Load Efficiency(Typ.) |
>83% |
>83% |
|
|
AC Current(Typ.) |
0.61A/110VAC, 0.58A/170VAC, 0.46A/220VAC, 0.41A/265VAC |
||
|
Leakage current |
﹤0.25mA/110V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1/-2/-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV) |
||
|
Others |
Weight |
About 1.0Kg |
|
|
Size |
210*68.5*43mm(L*W*H) |
||
|
packing |
324*298*176mm (L*W*H) |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
Problem analysis
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL
Company information
Quanzhou Smarts Electronic & Technology Co.,Ltd is UL/ETL audited power supply manufacture in China.
We are professional manufacturer specializing in waterproof & plastic cover constant voltage & current LED drivers, 0-10v /triac dimmable constant voltage & current led drivers,
enclosure power supplies, switching power adapters. We start this business since 1998 and most of our product have got CE,UL,ETL,ROHS approval.
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd?
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved withETL, UL/CE/Rohs approval,
3). We give 2-7 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. .
Our goal is to provide you the right product and make you satisfied, so if you are interested in our product. please don’t hesitate to contact us.
