12volt 48watt slim waterproof IP67 12v 4 amp power supply for led mirror
products through ETL,CE,RoHS Certificationr, ETL file#: 5005044 12v 4 amp power supply, meet with Canada and USA market Can match superior lighting used in Storage areas, garages, smallwarehouses, & shops.
Specifications
1.All parameters NOT specially mentoned are measured
at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
MODEL
SMT-012-048VW
SMT-024-048VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
4.0A
2.0A
CURRENT RANGE
0~4.0A
0~2.0A
RATED POWER
48W
48W
RIPPLE&NOISE(max)
1.1V
1.12V
voltage TOLERANCE
12V±5%
24V±5%
SETUP RISE TIME
80ms/110VAC
80ms/110VAC
HOLD UP TIME(Typ.)
60ms/110VAC
60ms/110VAC
INPUT
VOLTAGE RANGE
100~265Vac
100~265Vac
FREQUENCY RANGE
50~60Hz
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
>83%
>84%
AC CURRENT(Typ.)
0.6A/110V, 0.35A/220V
0.5A/110V,0.25A/220V
INRUSH CURRENT (Typ.)
COLD START 30A/110~220VAC
PROTECTION
Short circuit
recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
UL, CE Mark(LVD), IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE

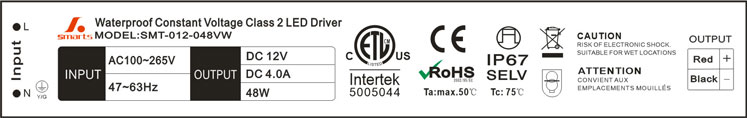

Label
What is constant voltage led driver?
A Constant Voltage LED Driver 12V & 24v can be used to power LED lights that have constant current drivers already within the system or resistors . 'Constant voltage' refers to the ability to fluctuate output current to maintain a set voltage. So you need some type of constant voltage power supply that can convert your AC household voltage down to a safe DC voltage
