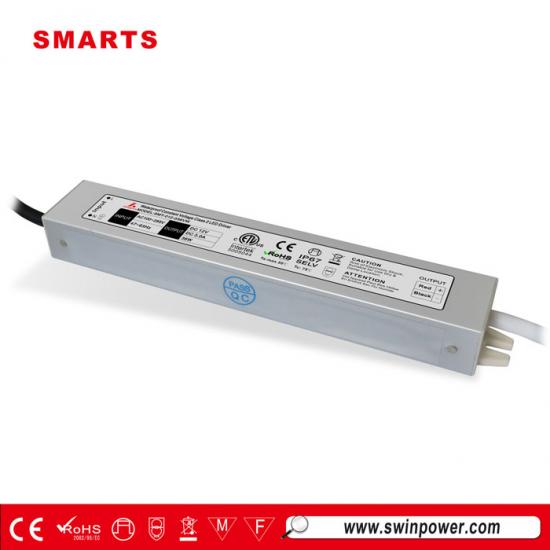

mini slim 36w ip67 led driver 12v 3 amp power supply with ce etl rohs
AC-DC Energy transfer, 12V @3.0A 36W output, 217*29*21mm super slim size IP67 12v 36w led driver .
High waterproof performance, often used in outdoor lighting, can be used with CreeLighting level street & area light
Specifications
SPECIFICAION
MODEL
SMT-012-036WW
SMT-024-036VW
SMT-036-036VW
OUTPUT
DC VOLTAGE
12V
24V
36V
RATED CURRENT
3.0Amp
1.5Amp
1.0Amp
CURRENT RANGE
0~3.0A
0~1.5A
0~1.0A
RATED POWER
36W
36W
36W
RIPPLE&NOISE(max)
150mV
150mV
150mV
CURRENT TOLERANCE
±0.5V
±0.5V
±0.5V
SETUP RISE TIME
80ms/110,220VAC
81ms/110,220VAC
82ms/110,220VAC
HOLD UP TIME(Typ.)
60ms/110-220VAC
60ms/110-220VAC
60ms/110-220VAC
INPUT
VOLTAGE RANGE
100~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
>84%
>84%
>83%
AC CURRENT(Typ.)
3.5A/110,220VAC
2.0A/110,220VAC
1.5A/110,220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
ETL/ROHS/CE Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
label
Product parameters
|
Model |
Input voltage(AC V) |
Working Frequency (Hz) |
Output voltage (DC V) |
Output Current |
Output power (DC W) |
Working Temp. |
Protection grade |
|
SMT-012-036VW |
100-265V |
47~63Hz |
12±0.5 |
3.0A |
36W |
-25~50°C |
IP67 |
|
SMT-024-036VW |
100-265V |
47~63Hz |
24±0.5 |
1.5A |
36W |
-25~50°C |
IP67 |
|
SMT-012-060VW |
100-265V |
47~63Hz |
12±0.5 |
5A |
60w |
-25~50°C |
IP67 |
|
SMT-024-060VW |
100-265V |
47~63Hz |
24±0.5 |
2.5A |
60W |
-25~50°C |
IP67 |
What is constant voltage led driver?
A Constant Voltage LED Driver 12V & 24v can be used to power LED lights that have constant current drivers already within the system or resistors . 'Constant voltage' refers to the ability to fluctuate output current to maintain a set voltage. So you need some type of constant voltage power supply that can convert your AC household voltage down to a safe DC voltage
