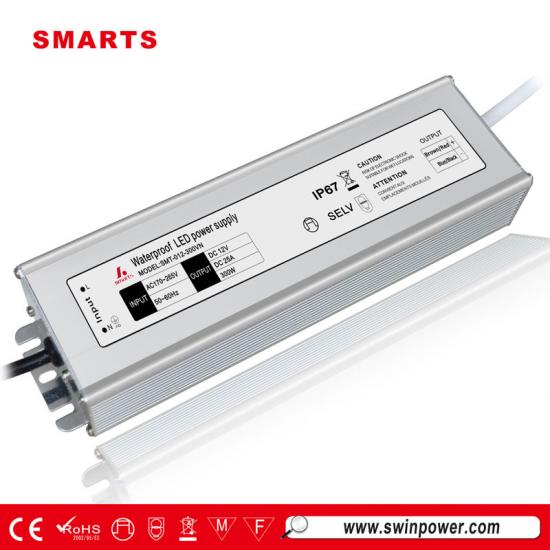

2 years warranty 12v 25A 300W waterproof power supply constant voltage led driver

300W waterproof power supply has high efficiency >88%,and low operation temperature,100% full-load burn-in test.we give 2 years warranty,Compared with the moso 300w led driver, the aluminum shell material has more waterproof functions, which can be installed indoors and outdoors
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-300VN
  • Input Voltage:

    170-265Vac
  • Output Voltage:

    12
  • Output Current:

    25A
  • Working Mode:

    constant voltage
  • Dimming mode:

    non-dimmable
  • Size:

    275*95*50mm
Products description

2 years warranty 12v 25A 300W waterproof power supply constant voltage led driver


220vAC led transformer is suitable for non-American market.we have any no certificate for this series.

Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel,Compared with the meanwell 300w LED driver, the aluminum shell material has more waterproof functions, which can be installed indoors and outdoors



 Features


  1. IP67 design for indoor or outdoor installations
  2. Protections:Short circuit/Overload/Over temperature
  3. Cooling by free air convection
  4. 100% full load burn-in test
  5. Suitable for LED lighting
  6. Products through UL,CE,RoHS Certification
  7. 2 years warranty


 Product parameters


SPECIFICAION
MODEL SMT-012-300VN SMT-024-300VN
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 25A 12.5A
CURRENT RANGE 0~25A 0~12.5A
RATED POWER 300W
RIPPLE&NOISE(max) <700mV <700mV
VOLTAGE TOLERANCE ±0.5V ±0.5V
SETUP RISE TIME 80ms/220VAC
HOLD UP TIME(Typ.) 60ms/220VAC
INPUT VOLTAGE RANGE 170~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) >83% >84%
AC CURRENT(Typ.) 2.35A/220VAC 2.33A/220VAC
INRUSH CURRENT (Typ.) COLD START 50A/220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload 25-27A 12.5-13.5A
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE 1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
    capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

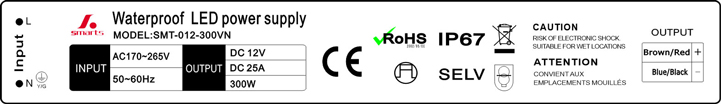

  Label   constant voltage led driver 250w power supply
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



Constant voltage led driver

 FAQ


Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.



Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
