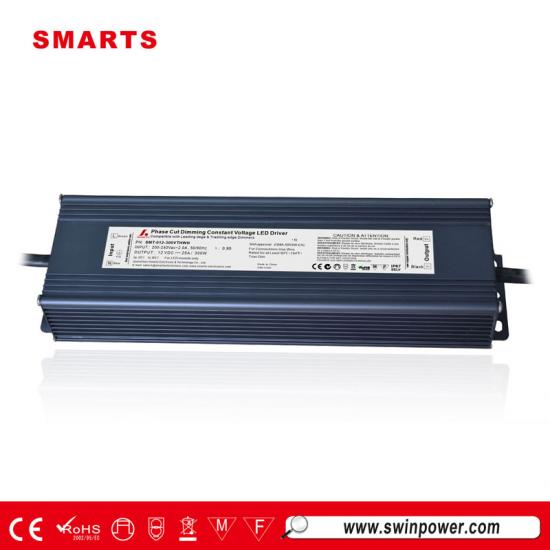

220V 12volt 300W triac dimming waterproof led driver for outdoor light
Specification
The 300 watt led power supply is designed for those countries that require CE SAA certificaites. Please rest assured of the quality of our triac dimming led drivers that it gives 7 years warranty. Eltako EUD12NPN-UC dimmer is one of compatible dimmers.
|
Model |
SMT-012-300VTHWH |
SMT-024-300VTHWH |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Voltage Tolerance |
±0.5V |
|||
|
Load Regulation |
±2% ±1% |
±1%
|
||
|
Rated current |
25.0A |
12.5A |
||
|
Rated power |
300W |
|||
|
Input |
Voltage Range |
220-240VAC |
||
|
Frequency Range |
47～63HZ |
|||
|
Power Factor（Typ.） |
PF≥0.95（Full loading） |
|||
|
Full Load Efficiency（Typ.） |
>88% |
>90% |
||
|
AC Current（Typ.） |
2.0A 1.76A .A 1.74A |
|||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
No output, remove the fault and re-power on to recover |
||
|
Over load |
≤120% |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||
|
Environment |
Working TEMP. |
-40～+60℃ |
||
|
Working Humidity |
20～90%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
||
|
Withstand voltage |
I/P-O/P:3.75KVACI/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≥60%loading) |
|||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6 ,11,EN61547 |
|||
|
Others |
Weight |
1.67kg |
||
|
Size |
276*78*47mm(L*W*H) |
|||
|
packaging |
336*121*61mm inner box,350*310*260mm outside carton 10PCS /CTN |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3. Loading range from 10% to 100% |
|||
 |
 |
 |
 |
■Mechanical Specification
MODEL: SMT-012-300VTHWH
Model: SMT-024-300VTHWH
Ø Input Rubber cable H05RN-F 3*1.0mm² ,the green /yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
Ø Output Rubber cable H07RN-F 2*1.5mm²,Red is output(V+) Positive,Black is output (V-) negative.Connected to LED Lamps.
Ø
Note:Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
■Dimming Operation
Ø Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Ø Compatible with Leading edge and tailing edge triac dimmers.
Ø Please use a dimmer with max. power at least 1.5 times than the load.
■Derating Curve
Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

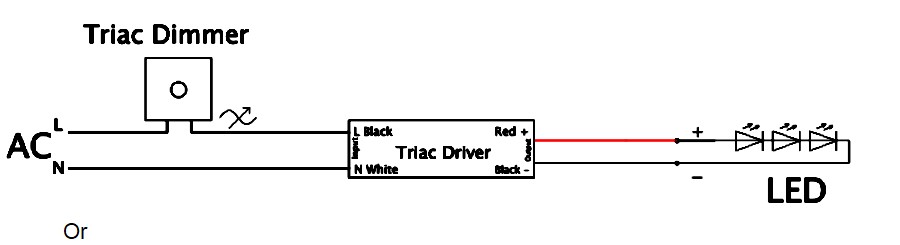

■ Simple Connection Diagram
■Connecting Diagram
■ Instruction:
※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;
※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-595-22863721 ext.808
Official website: www.smarts-electronics.com & www.swinpower.com
Compatible Dimmer Type
The led driver for outdoor light has the feature of water-resistant. The design solution, components grade is better that compared with most other led drivers on the market. If you are looking for suitalbe led lights to match it, most AQ lighting's led strips may take into your considerations.
|
