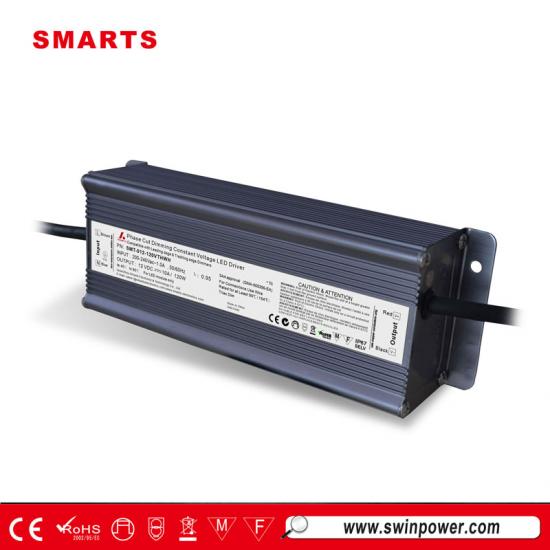

Triac dimming 120w 240v-12v led light driver with CE ROHS certificaiton
|
The dimmable led power supply 240v 12v has a EU input range 200-240VAC. This item is CE and RoHS compliant and conforms to all UK safety standards with high quality. Forward Phase or Reserve phase dimmers both are available. For example,MALMBERGS dimmer and Legrand dimmer. |
Specification
|
model |
SMT-012-120VTHWH |
SMT-024-120VTHWH |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Tolerance |
±0.5V |
||
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±2%±1% |
±1% |
|
|
Rated current |
10.00A |
5.0A |
|
|
Rated power |
120W |
120W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≥0.95 (@full load) |
||
|
Full Load Efficiency(Typ.) |
>88% |
>90% |
|
|
AC Current（Typ.） |
1.0A |
1.0A |
|
|
Leakage current |
﹤0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode,recovers automatically after fault condition is removed |
|
|
Over temperature |
≤120% |
||
|
Over Loading |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVACI/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≥60%loading) |
||
|
Others |
EN61000-4-2,3,4,5,6 ,11,EN61547 |
||
|
Weight |
1.1kg |
||
|
packing |
230*70*43mm(L*W*H) |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.Loading range from 10% to 100% |
||
 |
 |
 |
 |
■ Mechanical Specification:
Ø
Input Rubber cable H05RN-F 3*1.0mm² ,the green /yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
Ø Output Rubber cable H07RN-F 2*1.5mm²,Red is output(V+) Positive,Black is output (V-) negative.Connected to LED Lamps.
Note:Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
■Dimming Operation
Ø Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Ø Compatible with Leading edge and tailing edge triac dimmers.
Ø Please use a dimmer with max. power at least 1.5 times than the load.
■Derating Curve
Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

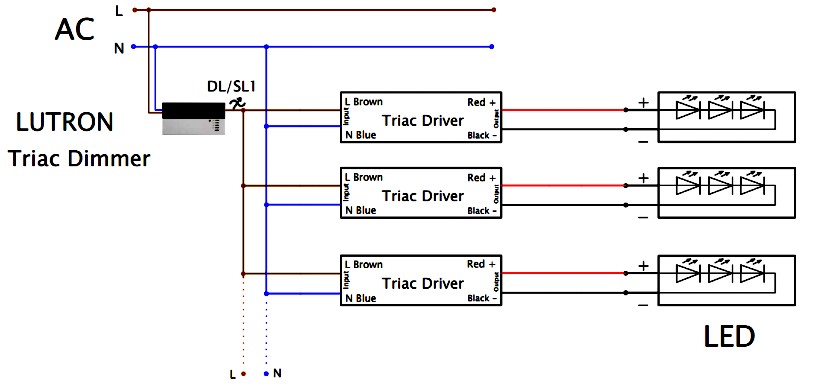

■ Connection Diagram
■ Instruction:
Ø This driver should be installed by qualified and professional person;
Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;
Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-18016688251
Welcome to visit our official website: www.smarts-electronics.com and www.swinpower.com Thanks.
Compatible Dimmer Type
Our 12 volt led light driver 120W is fully enclosed with waterproof compound, making it excellent when used with outdoor equipments.All of the model are covered by a 7-years warranty. Fulham LED Modules has 12VDC.
|
