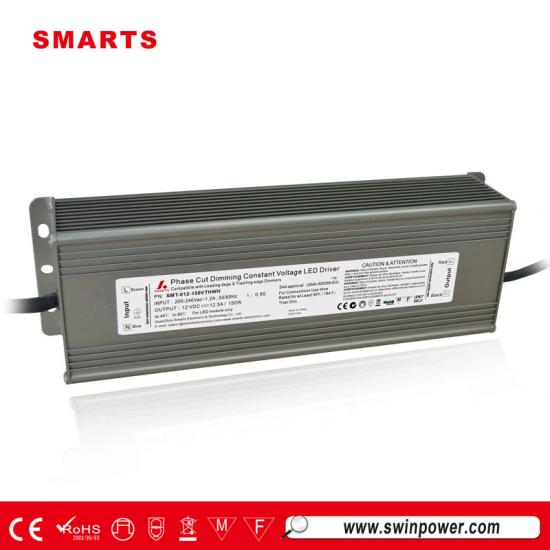

CE ROHS listed triac dimmable led driver 12v 150w
|
Smarts's 12v 150w waterproof led power supply, we can offer dimmable or non dimmable type. They are compatible well with Parmida LLC 150w LED downlight. |
Specification
model
SMT-012-150VTHWH
SMT-024-150VTHWH
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Rated current
12.5A
6.25A
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2% ±1%
±1%
Rated power
150W
150W
Input
Voltage Range
200-240V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
>0.95@220VAC
Full Load Efficiency(Typ.)
>88%
>90%
AC Current（Typ.）
1.2A
1.2A
Leakage current
﹤0.5mA/110V
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Loading
≤120% constant current limiting, auto-recovery
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
EN55015,EN61000-3-2,3 (≥60%loading)
Others
Net Weight
EN61000-4-2,3,4,5,6 ,11,EN61547
Size
1.45kg
packing
265*78*47mm(L*W*H)
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃
of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
3.Loading range from 10% to 100%
Mechanical Specification
Input terminals "Black" and "White" to connect to AC L and N.
Output terminals "Red" to LED Positive side (+) , "Black" to LED Negative side (-).
Compatible LED Module Type
We are pleased to inform you that our led driver power supply can be worked well with the Signify brand Blue Line Flat Panels are now commercially available. All products will meet CE ROHS SAA listed certification.
Related Products
|
 |
Smarts LED driver power supply could be for direct and indirect lighting in offices, banks, schools, public buildings, supermarkets and other applications to replace high energy efficiency led lighting.
Mode：SMT-012-120VTDHV2 intput voltage：100~277V AC Efficiency > 88% Size：220*94.5*40mm （L*W*H） Weight：1.3Kg/pcs |
|
|
