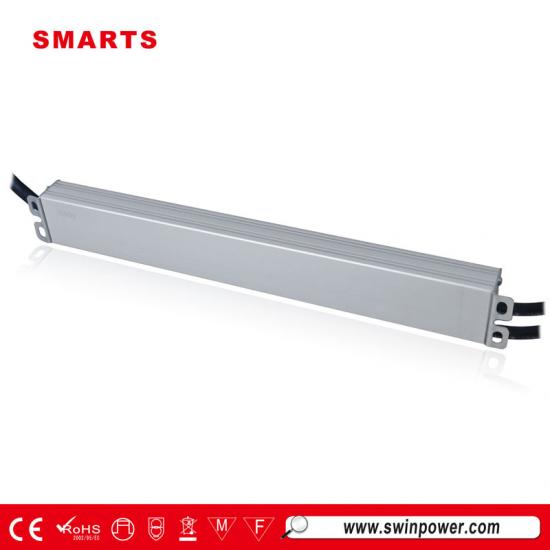

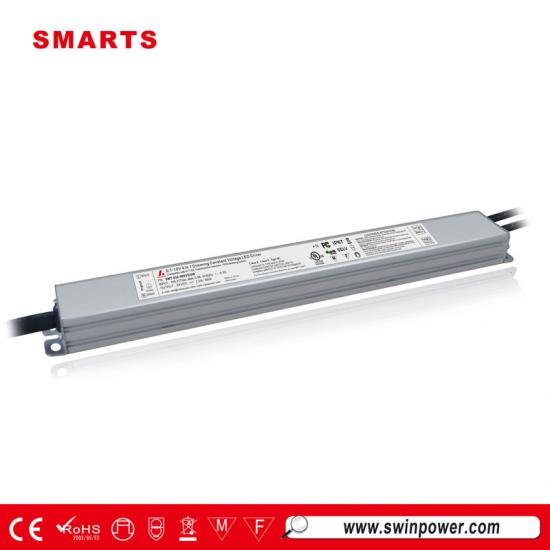

24v 60w slim led power supply with 0-10v dimmable

24v 60w slim 0-10v dimmable led power supply could 0-100% dimming work with dimmer,With the LEGRAND WSCL450TCCCV4 dimmer, you can achieve a smooth dimming effect
  • Brand:

    SMARTS
  • Item No.:

    SMT-024-060VDSW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    24vdc
  • Output Current:

    2.5amp
  • Working Mode:

    constant voltage
  • Dimming mode:

    0-10v dimmable
  • Size:

    300*32*20mm
  • Certification:

    cUL/UL, FCC,Class 2, RoHS
Products description

24v 60w slim led power supply with 0-10v dimmable

Smarts SMT-024-060VDSW is 24v 60w slim led power supply which could compliance to worldwide safety regulations for lighting.


  Feture


·Output constant voltage

·Input voltage range 100-277VAC

·UL, cUL listed, Class 2, Class P approval

·Built-in PFC function / Efficiency > 84% / PF> 0.99

·Dimming range: 0~100%

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry,wet or damp environment installations

·Cooling by free air convection

·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty


  Specification



 Specification



model

SMT-012-060VDSW

SMT-024-060VDSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

5.0Amp

2.5Amp

Rated power

60W

60W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.99@120VAC   0.95@277VAC

THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC

Full Load Efficiency(Typ.)

84%@120VAC ,86%@277VAC

83%@120VAC ,85%@277VAC

AC Current(Typ.)

0.9A

Inrush Current(Typ.)

11A,50%,1ms@120VAC;     27A,50%,960us@277V

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.45Kg

Size

300*32*20mm (L*W*H)

packing

330*270*160mm/   30pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
