CE certificate 0-10v Dimmable LED Driver 300mA 8W for LED Strip Light

0-10v Dimmable LED Driver 8W are applicate indoor illuminating light;led Neon;led panel etc. Can be matched with GLLS S 207 RGB model
  • Brand:

    SMARTS
  • Item No.:

    SMT-28-0300CDH
  • Input Voltage:

    180-265Vac
  • Output Voltage:

    16-28V
  • Output Current:

    300mA
  • Working Mode:

    constant current
  • Dimming mode:

    0-10v dimming
  • Size:

    85*45*26mm
  • Certification:

    CE ROHS
Products description

CE certificate 0-10v Dimmable LED Driver 300mA 8W for LED Strip Light


300mA 8w 0-10v dimmable constant current led driver are input voltage 180-265vAC led driver.we give 3 years warranty,Longer warranty period than DONE LED driver.


 Specification


 0-10v Dimmable LED Driver

 Feture:

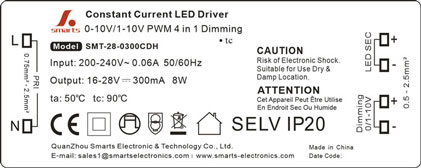

Model: SMT-28-0300CDH

DC Current :300mA

Output Voltage Range :16-28V

Output Rated power :8W

Input voltage range:180-265vAC

Frequency Range : 47~63HZ

Current Accuracy±5%

Warranty:3 years

CE ROHS approval

PFC>0.90, Efficiency>0.85

Compact size,light weight

100% full-load burn-in test

With short-circuit and overload projection



Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top




 Analysis problem:



Question:

What is the advantages of your 0-10V dimmable led driver?

Answer:

-- the dimming range of other brand 0-10v dimmable led drivers is 1%-100%, but Smarts’ 0-10v dimmable led driver can be 0%. And it do not have the flicker issue.

-- Other brand 0-10v dimmable led driver achieve dimming function though adjust the output current and it has the min load limitation. But Smarts’ 0-10v dimmable led driver is adjust the output voltage to achieve dimming function.

-- What is more, Smarts Electronics’ 0-10v dimmable led driver do not have min load limitation. That is to say, you do not consider the load limitation when you choose our led driver.

-- Our 0-10v dimmable led driver has passed the ETL FCC CE Rohs listed and has 3 years warranty.






 packaging & shipping

inner box-white box + outer carton- standard exporting carton for packing



0-10v dimmable led driver





  1. MOQ: 1 pcs
  2. Delivery: 7 working days for sample order,12 working days for 500pcs.
  3. Shipping freight are quoted under your requests.
  4. Loading port: Xiamen


 Certification:

0-10v dimmable led driver
