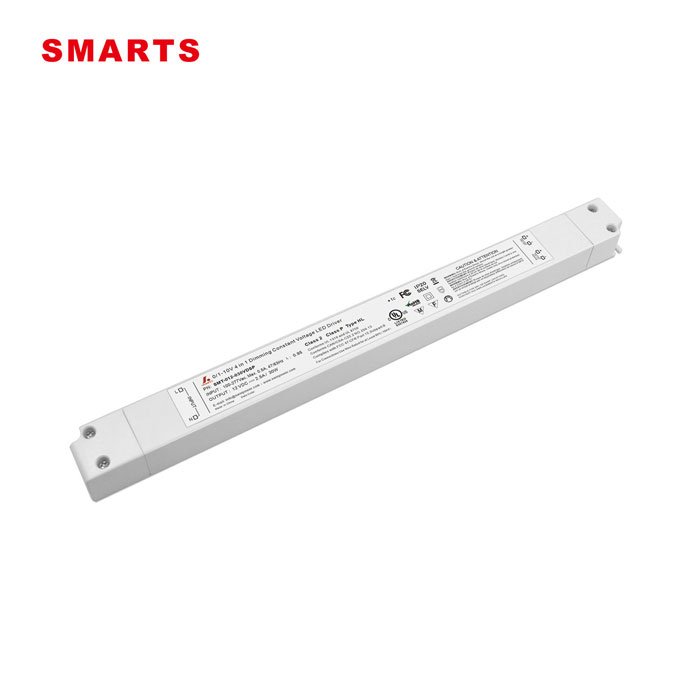

pwm 0 10v dimmable 12v 24v 48v 30W constant voltage led power supply Plastic housing

100-277VAC constant voltage 0 10V dimmable LED power supply has built-in active PFC function, working efficiency up to 85%. Plastic shell design, waterproof grade ip20. Suitable for indoor small space lighting project installation
  • Brand:

    SMARTS
  • Item No.:

    SMT-12030-VD-P
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC/24VDC/48VDC
  • Working Mode:

    Constant Voltage
  • Dimming mode:

    0 10v dimmable
  • Size:

    155*54*19.7mm
  • Certification:

    UL、CE
Products description

 pwm 0 10v dimmable 12v 24v 48v 30W constant voltage led power supply Plastic housing

0 10v dimmable led driver 30W 12V 24V 48V .Fully plastic protective housing Dimming range between 0-100% Ultra-deep dimming. UL certified, in compliance with global safety lighting regulations. 7-year warranty


  Specification

Model SMT-12030-VD-P SMT-24030-VD-P SMT-48030-VD-P
Certificate UL / cUL / FCC / Class P / Class 2
Output DC Voltage 12V 24V 48V
Voltage Tolerance ±5% ±2.5% ±1.25%
Voltage Regulation ≤0.5% ≤0.5% ≤0.5%
Load Regulation ≤2% ≤1% ≤1%
Rated current 2.5A 1.25A 0.63A
Rated power 30W
Voltage Ripple 500mVp-p 400mVp-p 350mVp-p
Overshoot voltage <10%(full load) <10%(full load) <10%(full load)
Output volt Adjustment 12-13V    24-26V    48-50V
Output mode selection The DIP switch in the "ON" position represents the PWM (Pulse - Width Modulation) mode, and in the "1" position represents the VR (Modulation of DC Voltage) mode.
Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect.
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Power Factor (Typ.) @ full load >0.98@1200VAC
>0.95@277VAC
>0.98@1200VAC
>0.95@277VAC
>0.98@1200VAC
>0.95@277VAC
THD(Typ. ) @ full load <15%@120V  <15%@277V
Efficiency(Typ.) @ full load ≥78%@120VAC
≥80%@277VAC
≥82.5%@120VAC
≥84%@277VAC
≥83.5%@120VAC
≥85%@277VAC
AC Current (Max.) ≤0.4A @120VAC    ≤0.16A@277VAC
Standby power ≤0.5W
Inrush Current (Typ.) 25A,120us@50%Ipeak 120VAC     60A,136us@50%Ipeak 277VAC
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, can be automatically restored after abnormal removal
Over Load ≥120%,Constant - Current Mode, automatic recovery after exception
Over temperature When the ambient temperature exceeds 55℃ ±5℃, the output is turned off
Environment Working TEMP. -40~+40℃ (see below derating curve)
Working Humidity 20 - 90%RH  non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95% RH non-condensing
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10 ~ 500Hz, 2G 12 minutes/cycle, X Y Z axis 72 minutes each
Safety & EMC Safety standards UL8750  CAN/CSA-C22.2 No.250.13
Withstand voltage I/P-O/P:1.88KVac
Isolation resistance I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH
Surge Immunity Test AC Power Line:Differential Mode 2KV
EMC Immunity FCC/ICES do not request this test
EMC Emission FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5
Others Net Weight 0.25kg
Dimension 155*54*19.7mm(L*W*H)
Packing 350*240*135mm    40 pcs / CTN
Notes 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
4. Default states:
The output mode is PWM output by default.
The dimming curve is a gamma2.2 curve.
5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10.

Click Send Email for Details

Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification

American wire gauge
SD5
Input wire DG126-3P
Output wire DG126-2P
Dimming wire   DG126-2P

MCB recommendation

When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of  LED Driver
C type 10A 18
13A 23
16A 29
20A 35
25A 45
When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of  LED Driver
C type 10A 45
13A 58
16A 72
20A 89
25A 112

Warm tips:

1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²

For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A

2. Any other requests for cable, we can customized.



 Dimming Operation



 Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming



  Related Products

30w led driver

This 30W 0-10v dimmable led power supply has a plastic housing design and is waterproof to ip20. It is very slim and suitable for indoor small space lighting projects. 7 years warranty.


Model: SMT-012-030VDSP

Input Voltage: 100-277vac

Dimming Mode: 0 10v dimmable
Size: 260*30*18.5mm (L*W*H)
Certification:UL,FCC, CE, ROHS
