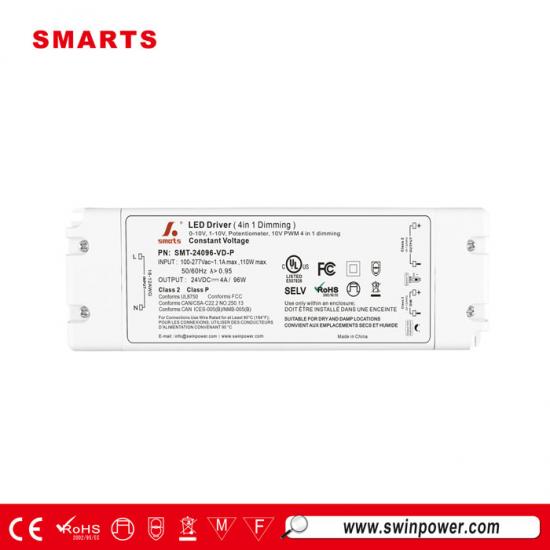

pwm 0 10v dimmable constant voltage led power supply for led lights 96w

100-277vac constant voltage 96W 0 10v dimmable led power supply working efficiency up to 91%. Plastic shell design, waterproof grade ip20. Use natural air cooling. With 7 years warranty
  • Brand:

    SMARTS
  • Item No.:

    SMT-24096-VD-P
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC/24VDC/48VDC
  • Working Mode:

    Constant Voltage
  • Dimming mode:

    0 10v dimmable
  • Size:

    178*61.1*24mm
  • Certification:

    UL、CE
Products description

pwm 0 10v dimmable constant voltage led power supply for led lights 96w

Smartspower's new upgraded 0 10v dimmable LED power supply 96W has a constant voltage working mode, with an efficiency of up to 91%. The dimming range is 0-100% ultra-deep dimming. It complies with global safety lighting regulations and has a 7-year warranty.


  Specification

Model SMT-24096-VD-P SMT-48096-VD-P
Certificate UL / cUL / FCC / Class P / Class 2/SELV/RoHS
Output DC Voltage 24V 48V
Voltage Tolerance ±4% ±2%
Voltage Regulation ≤1% ≤0.5%
Load Regulation ≤1% ≤1%
Rated current 4A 2A
Rated power 96W
Voltage Ripple 296mVp-p 176mVp-p
Overshoot voltage <3% (full load) <4%(no load)
Output volt Adjustment 24-26V    48-50V
Output mode selection The DIP switch in the "ON" position represents the PWM (Pulse - Width Modulation) mode, and in the "1" position represents the VR (Modulation of DC Voltage) mode.
Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect.
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Power Factor (Typ.) @ full load >0.98@120VAC
>0.96@277VAC
>0.98@120VAC
>0.96@277VAC
THD(Typ. ) @ full load <15%@120V  <15%@277V
Efficiency(Typ.) @ full load ≥88.0%@120VAC
≥91.5%@277VAC
≥87.2%@120VAC
≥90.6%@277VAC
AC Current (Max.) ≤1.0A @120VAC  ≤0.43A@277VAC
Standby power ≤0.5W
Inrush Current (Typ.) 51A@50%Ipeak 208us @120VAC,118A@50%Ipeak 452us @277VAC.
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, can be automatically restored after abnormal removal
Over Load ≥120%,Constant - Current Mode, automatic recovery after exception
Over temperature When the ambient temperature exceeds 55℃ ±5℃, the output is turned off
Environment Working TEMP. -40~+40℃ (see below derating curve)
Working Humidity 20 - 90%RH  non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95% RH non-condensing
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10 ~ 500Hz, 2G 12 minutes/cycle, X Y Z axis 72 minutes each
Safety & EMC Safety standards UL8750  CAN/CSA-C22.2 No.250.13
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH
Surge Immunity Test AC Power Line:Differential Mode 2KV
EMC Immunity FCC/ICES do not request this test
EMC Emission FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5
Others Net Weight 0.36KG
Dimension 178*61.1*24mm(L*W*H)
Packing 290*215*140mm    20 pcs / CTN
Notes 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
4. Default states: The output mode is PWM output by default. The dimming curve is a gamma2.2 curve.
5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10.

Click Send Email for Details

Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification

American wire gauge
SD8
Input wire DG128-3P
Output wire DG128-2P
Dimming wire DG128-2P

MCB recommendation

When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of  LED Driver
C type 10A 9
13A 12
16A 14
20A 18
25A 23
When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of  LED Driver
C type 10A 21
13A 27
16A 33
20A 42
25A 52

Warm tips:

1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²

For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A

2. Any other requests for cable, we can customized.


 Dimming Operation

 Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming


  Related Products

96w led driver

Ultra-thin size 96W 24V constant voltage 0 10v dimmable LED driver. Full aluminum housing, waterproof grade ip67, good heat dissipation. UL certified, in line with global safety lighting regulations, suitable for outdoor small space lighting project installation


Model: SMT-024-096VDSW

Input Voltage: 100-277vac

Dimming Mode: 0 10v dimmable
Size: 330*32*23mm (L*W*H)
Certification:UL,FCC, CE, ROHS

Leave a message
To know more our LED drivers/power supplies/LED transformers, pl. send email to us, we will reaply you soon.
