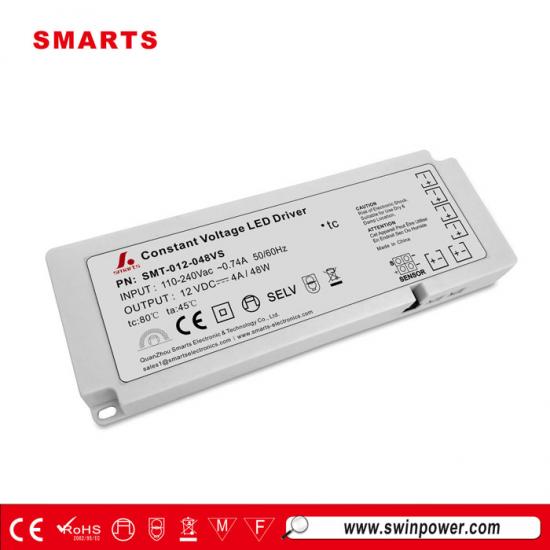

Small size 12v 40w 48w 50w led driver for LED strip
The led driver 40w 48w 12v IP20 is provided with 12vdc output voltage, which is what you need the exactly constant voltage type led driver for Nilight LED brand of LED bar light.
Specification
| SPECIFICAION | |||||
| MODEL | SMT-012-048VS | ||||
| OUTPUT | DC VOLTAGE | 12V | |||
| RATED CURRENT | 4A | ||||
| CURRENT RANGE | 0-4A | ||||
| RATED POWER | 48W | ||||
| RIPPLE&NOISE(max) | ＜150mV | ||||
| VOLTAGE TOLERANCE | ±0.5V | ||||
| INPUT | VOLTAGE RANGE | 100-265VAC | |||
| FREQUENCY RANGE | 47-63Hz | ||||
| POWER FACTOR(Typ.) | no PFC | ||||
| EFFICIENCY(Typ.) | >85% | ||||
| AC CURRENT(Typ.) | 0.38A/220VAC | ||||
| PROTECTION | Short circuit | Protection type:Hiccpe mode,recovers automatically after condition is removed | |||
| Overload | 4.5A | ||||
| ENVIRONMENT | WORKING TEMP. | -10~+40℃ (Refer to output load derating curve) | |||
| STORAGE TEMP | -40~+80℃ | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;SAA approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
| NOTE |
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||||
 |
 |
 |
 |
Mechanical Specification
① AC socket:DB-8
② Sensor switch socket:5557-3.0-2*2AW
③ DC socket:TCJ8H 6PCS
Cable Model of input : 2 pins plug power cord (VDE 18AWG wires)
output cord suggestion: H03VV-F 2*0.75mm2(red, black)
Compatible led closet light Type
You can also use our UL listed led power supply as accent lights. You just attach them to a surface with the included adhesive, and you’re good to go the LED closet light from Batuled!.
Related Products
|
|
Smarts Electronics has developed led strip driver accessories, such as triac/0-10v/dali dimmable led driver and non dimmable type led driver, we do full certification CE, ETL UL ROHS and FCC for universal market.

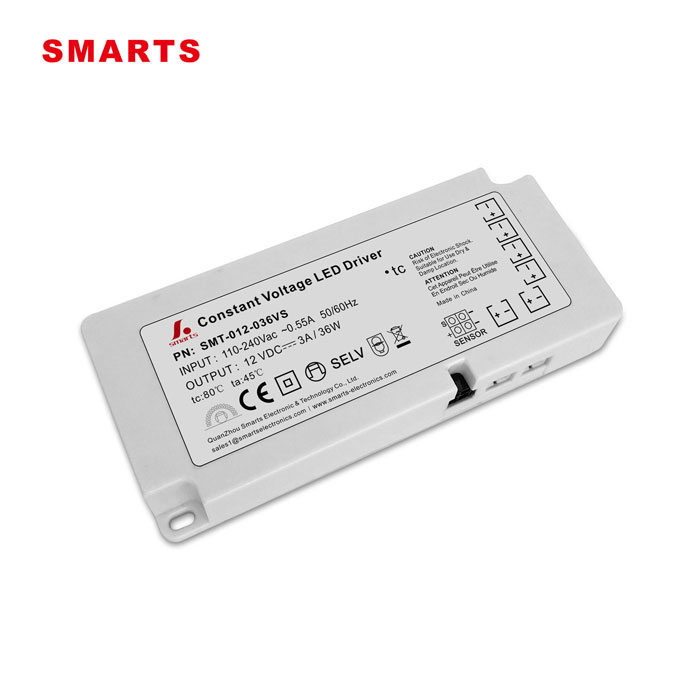

Mode：SMT-012-036VS intput voltage：100~265V AC Efficiency > 88% Size：138*56*18.5mm （L*W*H） Weight：0.85Kg/pcs |
|
|
