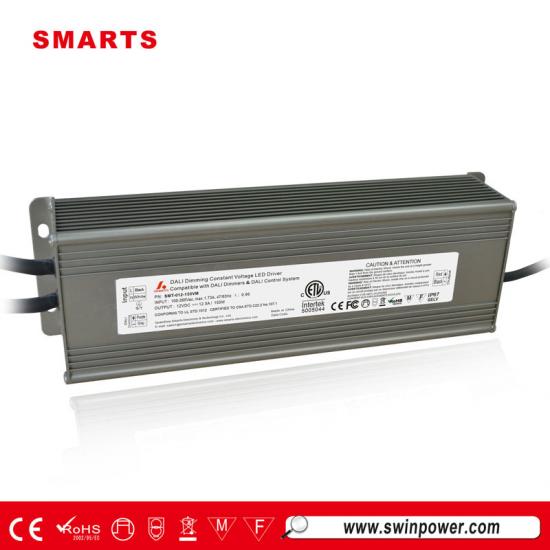

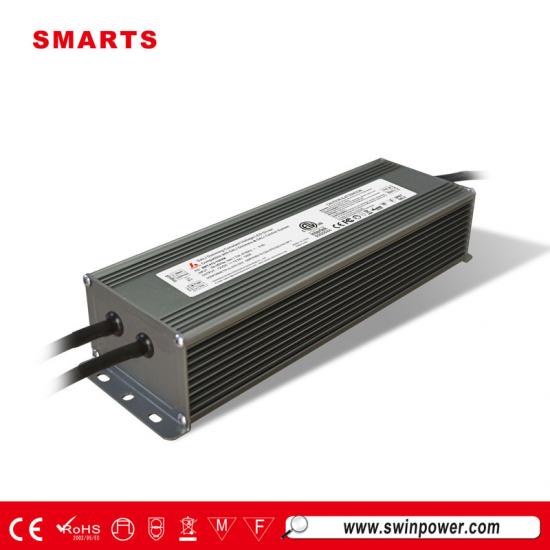

smooth dimming dali dimmable led power supply

Model

SMT-012-150VM

SMT-024-150VM

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

0 - 12.5A

0 - 6.25A

Rated power

150W

150W

Input

Voltage Range

100-265VAC/10-130VAC/170-265VAC

Frequency Range

47 - 63HZ

Power Factor

PF≧0.98/120VAC  PF≧0.98/230VAC PF≧0.95/265VAC（Full loading）

Full Load Efficiency(Typ.)

>89%

>90%

AC Current(Max.)

1.49A

1.47A

Leakage current

<0.5mA

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed.

Over Load

≤120%

Over Circuit

≤1.2*Iout

Protection Class:

Ⅰ

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40 - +60℃

Working Humidity

20 - 95%RH,non-condensing

Storage TEM.,Humidity

-40 - +80℃，10 - 95%RH

TEMP.coefficient

±0.03%/℃（0 - 50℃）

Vibration

10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.

Safety & EMC

Safety standards

EN61347-1 EN61347-2-13 IP66

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015,EN61000-3-2 (≥60%load)

EMC Immunity

EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）

Others

Weight

1.6Kg

Size

256*78*47mm（L*W*H）

packing

305*295*210mm/10pcs/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again.
