Waterproof power supply 12v 15A 180w Dali dimmable led driver for led light

180w Dali dimmable led driver should be installed by qualified and professional person,Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation,SMT-012-180VM has a load function, which can effectively protect the Acuity Floods-ACP1 LED and make the life of the lamp longer
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-180VM
  • Input Voltage:

    100-265vAC
  • Output Voltage:

    12V
  • Output Current:

    15a
  • Working Mode:

    constant voltage
  • Dimming mode:

    Dali dimming
  • Size:

    256*78*47
  • Certification:

    ETL CE ROHS
Products description

Waterproof power supply 12v 15A 180w Dali dimmable led driver for led light


Waterproof power supply must be ensure that wiring is correct before test in order to avoid light and power supply damage,If driver Cannot work normally, don’t maintain privately and contact us by email,Warranty up to 5 years, longer than Sloan 180w led driver warranty


 Feature


  1. Output constant Voltage
  2. Range: 100-265VAC
  3. Built-in active PFC function, PF>0.90
  4. Working Efficiency >88%
  5. Protections: short circuit/over load/ over current/ over temperature
  6. Cooling by free air convection
  7. IP67 design for indoor and outdoor installation .
  8. Dimming function: Built in DALI interface dimming function conform   to DALI Protocol IEC62386
  9. Dimming range from 0.1% to 100%
  10. 5 years warranty
  11. Suitable for intelligent LED lighting
  12. Compliance to worldwide safety regulations for lighting
  13. Suitable for dry locations


 Specification


Model

SMT-012-180VM

SMT-024-180VM

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

0 - 15A

0 - 7.5A

Rated power

180W

180W

Input

Voltage Range

                100-265VAC

Frequency Range

47 - 63HZ

Power Factor

PF0.90/120VAC  PF0.90/230VAC PF0.90/265VACFull loading

Full Load Efficiency(Typ.)

>88%

>88%

AC Current(Max.)

1.72A

0.86A

Leakage current

<0.5mA

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed.

Over Load

120%

Over Circuit

1.2*Iout

Protection Class:

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40 - +60℃

Working Humidity

20 - 95%RH,non-condensing

Storage TEM.,Humidity

-40 - +80℃10 - 95%RH

TEMP.coefficient

±0.03%/℃0 - 50℃

Vibration

10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.

Safety & EMC

Safety standards

EN61347-1 EN61347-2-13 IP66

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015,EN61000-3-2 (60%load)

EMC Immunity

EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level surge4KV

Others

Weight

1.6Kg

Size

256*78*47mmL*W*H

packing

305*295*210mm/10pcs/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again.

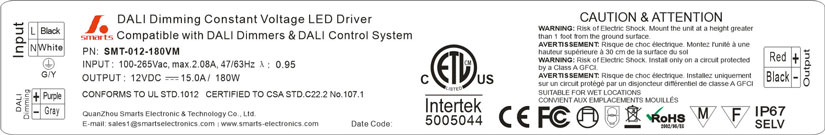

  Label   180w Dali dimmable led driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Problem Analysis


Question:

Can we make our company information on the label?

Answer:

--As per the policy of ETL/UL,  we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..

--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
