triac 350mA constant current led driver dimmable ETL CE listed
SMT-050-0350CT is triac led dimming driver with output current 350mA.The range of output voltage is from 35v to 50v. These triac drivers are engineered to work with Lutron dimmerTGCL-153PH-WH for superior dimming performance.
Specification:
|
Model |
SMT-050-0350CT |
SMT-030-0500CT |
SMT-040-0500CT |
SMT-025-0700CT |
|
|
Output |
DC Current |
350mA |
500mA |
500mA |
700mA |
|
Current Accuracy |
±5% |
||||
|
Voltage Range |
35~50V |
10~30V |
20~40V |
10~25V |
|
|
Rated power |
17.5W |
15W |
20W |
17.5W |
|
|
Input |
Voltage Range |
170～250VAC/(90-130VAC For North America Markets ) |
|||
|
Frequency Range |
47～63HZ |
||||
|
Power Factor（Typ.） |
PF≧0.92/110V;PF≧0.95/220V;PF≧0.93/250V |
||||
|
Full Load Efficiency（Typ.） |
85% |
86% |
85% |
85% |
|
|
AC Current（Typ.） |
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC |
||||
|
Leakage current |
<0.27mA/110VAC;﹤0.25mA/220VAC |
||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Over voltage |
≦270VAC |
||||
|
Environment |
Working TEMP. |
-40～+60℃ |
|||
|
Working Humidity |
20～90%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for60min. each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN-61347-1-2 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||||
|
EMC IMMUNITY |
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level（surge4KV） |
||||
|
Others |
Weight |
0.16Kg/pcs |
|||
|
Size |
140*45*28mm mmm（L*W*H） |
||||
|
packing |
324*298*176mm |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 1. 3.Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
 |
 |
 |
 |
Mechanical Specification:
※Input with connecting terminal
※Output with connecting terminal
※Note: Any other requests we can customized.
■Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or tailing edge triac dimmers.
※please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
■Derating Curve
※Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Compatible Dimmer Type
Triac led driver 350ma dimmable is rated for wet and dry locations. Indoors installation is more suitable. Active PFC function is built-in. It is available to fit in most common luminaires, Such as SANSI LED RGB LED Flood Light.
|
Related Products
|

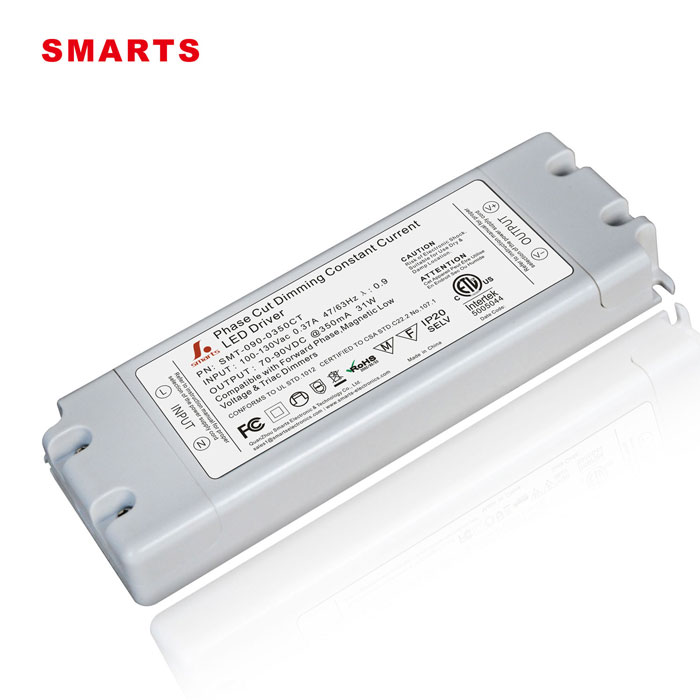

SMT-090-0350CT are rohs led drivers with 5 years warranty, The maximum output voltage is 90 volt. Have ETL CE Rohs FCC safe certificaiton.
