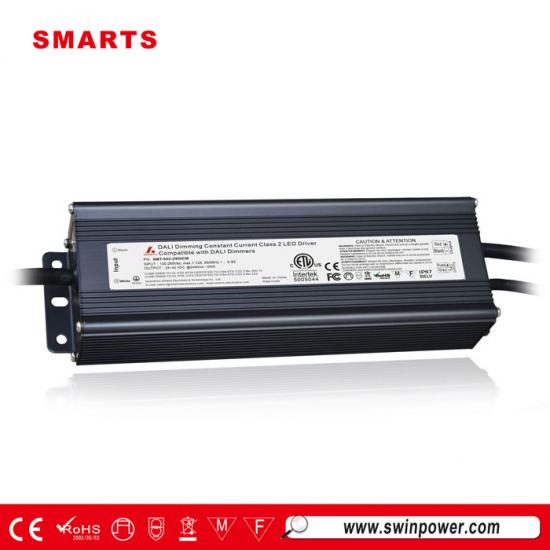

waterproof power supply 25-42vDC 2400mA 100w Dali dimmable led driver for led light
This Dali dimmable led driver 2400mA is a waterproof IP67 model,it is suitable for LED lighting applications by PWM output,suitable for dry/damp/wet location.Commonly used to match Onforu's LED floodlight 100W.
Specification
|
Model |
SMT-100-1050CM |
SMT-071-1400CM |
SMT-060-1750CM |
SMT-050-2000CM |
SMT-042-2400CM |
||
|
Output |
DC Voltage |
50~100V |
40~71V |
40~60V |
30~50V |
25~42V |
|
|
Voltage Accuracy |
±0.5V |
||||||
|
Rated current |
0～1050mA |
0～1400mA |
0～1750mA |
0～2100mA |
0~2400mA |
||
|
Rated power |
105W |
98W |
105W |
100.8W |
100w |
||
|
Input |
Voltage Range |
100-265VAC |
|||||
|
Frequency Range |
47～63HZ |
||||||
|
Power Factor ( Typ.） |
PF≧0.95/100V, 220V |
||||||
|
Full Load Efficiency（Typ.） |
>89%(110,220V) |
>88%(110,220V) |
>88%(110,220V) |
>88%(110,220V) |
>88%(110,220V) |
||
|
AC Current（Typ.） |
0.960A(110,220V) |
1.042A(110,220V) |
1.031A(110,220V) |
1.038A(110,220V) |
1.037A(110,220V) |
||
|
Leakage current |
﹤0.75mA/110, 220VAC |
||||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
Over Current |
≦1.4*I out |
||||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||||
|
Environment |
Working TEMP. |
-40～+50℃ |
|||||
|
Working Humidity |
20～95%RH,non-condensing |
||||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP66 |
|||||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV） |
||||||
|
Others |
Weight |
1.3Kg |
|||||
|
Size |
230*69*45mm（L*W*H） |
||||||
|
packing |
355*215*215mm/10pcs/CTN 240*70*50 mm for inner box |
||||||
|
Not es |
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||||
 |
 |
 |
 |
