0-10V dimmable led driver 12vdc 120w with ul certificate for led lights

SMT-012-120VDHW is dimmable led driver 0-10v 12v 120w with 100-277VAC.PFC function is built in and Power factor is over 0.9. Efficiency is higher than 88%. With 0-10V/ 1-10V/ 10VPWM signal or resistance. Suitable for LUTRON dimmer DVSTV-WH.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-120VDHW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC 24VDC
  • Output Current:

    10Amp 5Amp
  • Working Mode:

    constant volatge
  • Dimming mode:

    0-10v
  • Size:

    240*66*53mm
  • Certification:

    UL/CE/ROHS/FCC
Products description

0-10V dimmable led driver 12vdc 120w with ul certificate for led lights


120w led driver switching power supply uses PWM dimming to achieve smooth dimming.  UL listd for dry and damp and wet damp lacations.  Fully isolated Aluminum case with IP67. Could be dimmed 0-100%. 7- year extra long warranty. Well compatible with Eaton dimmer


  Specification



Model

SMT-012-120VDHW

SMT-024-120VDHW

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

0-10.0A

0-5.0A

Rated power

120W

Ripple&noise Max.

250mVp-p  400mVp-p

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

>0.90@110V,277V

Full Load Efficiency(Typ.)

 87%   >88%   88%

AC Current(Typ.)

1.263A/120VAC  0.891A/170VAC  0.689A/220VAC  0.572A/277VAC

Leakage current

﹤0.25mA/110V,277VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

≦325VAC

Over temperature

100℃±10℃  shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&

EMC

Safety standards

Class P, Type HL,EN61347-1EN61347-2-13  IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance toEN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry  level(surge4KV)

Others

Weight

1.32Kg

Size

240*66*53mm(L*W*H)

packing

329*279*176mm/10pcs

Notes

1. All parameters NOT specially mentioned are measured at110~277VAC input , rated load and

    25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a

    0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  ■ Mechanical Specification


120w led driver switching power supply

※Input 18AWG*3C,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

※Signal 18AWG*2C,Red is(DIM+),Black is(DIM-)

※Output 18AWG*2C,Blown is output(V+),Blue is output(V-)


  ■Dimming Operation


※Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-

※Reference resistance value for output current adjustment (Typical)

Resistance value

Signal driver

10KΩ

20KΩ

30KΩ

40KΩ

50KΩ

60KΩ

70KΩ

80KΩ

90KΩ

100KΩ

OPEN

Multiple drivers

0Ω/N

10KΩ/N

20KΩ/N

30KΩ/N

40KΩ/N

50KΩ/N

60KΩ/N

70KΩ/N

80KΩ/N

90KΩ/N

100KΩ/N

——

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

※1-10/0-10V dimmable function for output current adjustment(Typical)

Dimming value

0V

1V

2V

3V

4V

5V

6V

7V

8V

9V

10V

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

※10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ

Duty value

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

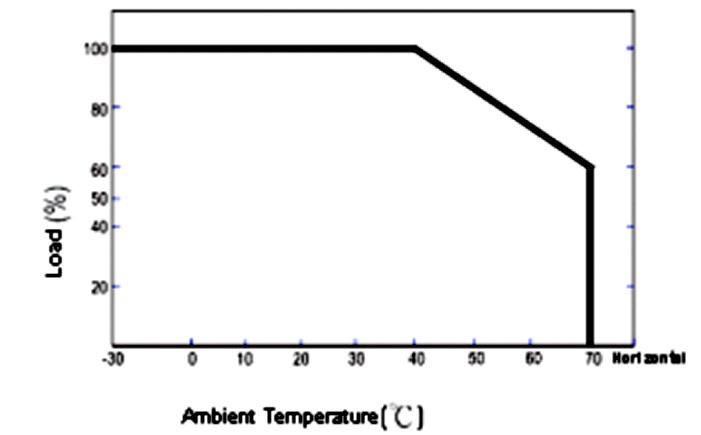

  ■Derating Curve


  120w led driver switching power supply

※Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.



■ 0/1-10V / Potentiometer / 10V PWM (3 in 1) Dimmable LED Driver connecting solution:

120w led driver switching power supply

Diagram 2 as below:

120w led driver switching power supply


  Compatible Dimmer Type


SMT-012-120VDHW is a type of 12 volt dimmable led power supply. Have a maximum input current of 10A. And maximum output power of 120W. short circuit/over current/over voltage/over temperature protections are provided. It could be matched with Birddog Lighting SMD-5050 12 volt blue strip light.


12 volt dimmable led power supply
