UL listed driver led DC 12v 150w 0 10v dimmable 120v AC
SMT-012-150VDHWV2 is driver led 12v 150w 0-10V dimming with junction box integrated with knock out. It is look nice for installing to hiding wiring in the hardwire box. It can be used in wet, damp, dry location for indoor and outdoor projects. The PWM output frequency can be up to 20000Hz, flicker free. It is able to dimming well with K-1275-24V's klusdesign.
Specification:
|
Model |
SMT-012-150VDH (1.0 version) SMT-012-150VDHV2 (2.0 version) SMT-012-150VDHWV2 (3.0 version)
|
SMT-024-150VDH (1.0 version) SMT-024-150VDHV2 (2.0 version) SMT-024-150VDHWV2 (3.0 version)
|
||
|
Output |
DC Voltage |
12V |
24V |
|
|
|
Rated Current |
12.5A |
6.25A |
|
|
|
Rated Power |
150W |
150W |
|
|
|
Voltage Tolerance |
±0.5V |
||
|
|
Voltage Regulation |
±0.5% |
||
|
|
Load Regulation |
±2% ±1% |
±1%
|
|
|
Input |
Voltage Range |
110-277VAC |
||
|
|
Frequency Range |
47-63Hz |
||
|
|
Power Factor(Typ.)@ full load |
0.98@120VAC 0.95@277VAC |
0.99@120VAC 0.94@277VAC |
|
|
|
THD(Typ.)@ full load |
<20% |
||
|
|
Efficiency(Typ.)@ full load |
85% @120Vac 86%@277Vac 79% |
85% @120Vac 87%@277Vac
|
|
|
|
AC Current（Max.） |
1.8A@100Vac |
||
|
|
Inrush Current （Typ.） |
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac |
||
|
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
||
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
||
|
|
Working Humidity |
20～90%RH, non-condensing |
||
|
|
Storage TEMP. Humidity |
-40～+80℃，10～95%RH |
||
|
|
TEMP .coefficient |
±0.03%/℃（0～50℃） |
||
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
||
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
1.8Kg (1.0 version) |
||
|
|
Size |
1.0 version: 260*103*46mm (L*W*H) /2.0 version: 260*105*45mm (L*W*H) 3.0 version: 260*125*45mm (L*W*H) |
||
|
|
packing |
Packaging: 10PCS/CTN
|
||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
|||
Compatible Dimmer Type

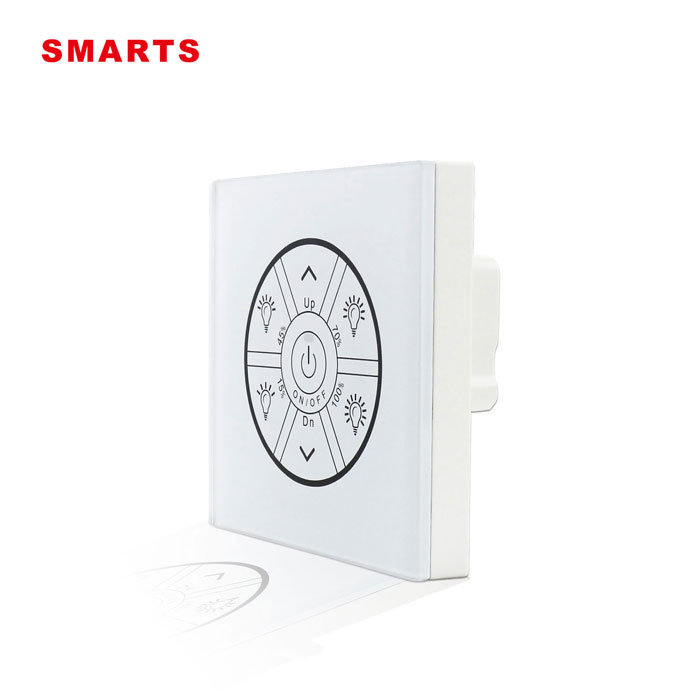

SMT50-D2 is 0-10V dimmer CE. Supply voltage 100-265Vac, frequency is 50/60 Hz. Product dimension L86*W86*H38mm. Output current 50mA. Output voltage 0-10V. And working temperature is -20-50℃. It can compatible with VMU240095LPyxxA's fulham.
