120v 277v ac dc 12V 60W 0-10V dimmable constant voltage led driver dimmable power supply
Smarts Electronics' 277v led driver dimmable 0-10V 12V from 30watts to 300watts available with isolated circuits and overload protection. This 277vac 0-10V Dimmable LED Driver is designed to work with any LUTRON wall dimmer (0-10V or Low voltage Magnetic) and allows you to smoothly dim your LED Strips from 0% to 100% without any noise or flickering. Note that this revolutionary LED Driver does not require a minimal load in order to offer you optimal dimming performances.

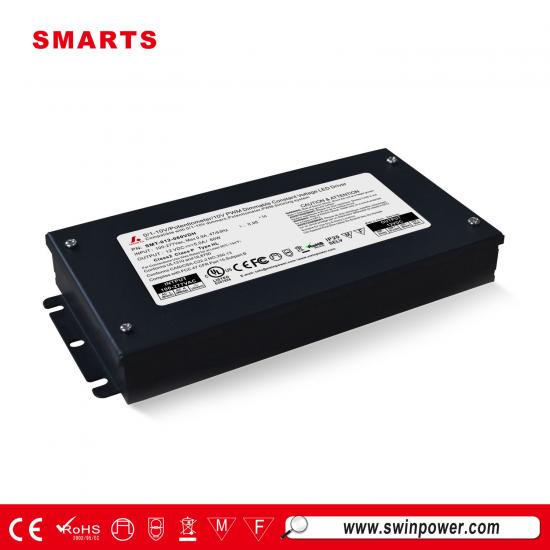

Dimmable Class 2 277v led driver 12v 60w
Input: 100 -277V AC
Output: 12V DC 5A max (60W)
Certification: UL/cUL CE Rohs
Dimensions Power Supply: 188*92*41mm
Weight: 1 kg
|
model |
SMT-012-060VDH |
SMT-024-060VDH |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Rated current |
5.00A |
2.50A |
|
|
Load Regulation |
±1%
|
|
|
|
Rated power |
60W |
60W |
|
Input |
Voltage Range |
100-277V AC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
Full Load Efficiency（Typ.） |
>88% |
>89% |
|
|
AC Current（Typ.） |
0.9A/110VAC |
|
|
|
Inrush Current （Typ.） |
14A, 50%, 780us |
|
|
|
Leakage current |
<0.50mA |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
|
|
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
|
|
|
Over voltage |
≦140VAC(90~135V) , ≦285VAC(170~277V) |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level （surge4KV） |
|
|
Others |
Weight |
About 1.1Kg |
|
|
|
Size |
188*92*26mm（L*W*H） |
|
|
|
packing |
10PCS/CTN （L*W*H） |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |
Mechanical Specification
Can we make our company information on the label?
Answer:
--As per the policy of UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our UL certification , then we can help you design the new label as requested.
