0 10v UL listed 60w 12vdc class 2 dimmable led driver for LED lights
12v 60w 0 10 volt led driver has smooth flicker free dimming down to 0% with LEDs. This high power factor led driver is class 2 compliant,which enables it safer and inspection ready. Matched with environmental lights LED stripsRGBWW-4in1-CC5050-72-reel seems good.
Specification
|
model |
SMT-012-060VDH(1.0 version) SMT-012-060VDHV2 (2.0 version) |
SMT-024-060VDH (1.0 version) SMT-024-060VDHV2 (2.0 version) |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
5.00A |
2.50A |
|
|
Load Regulation |
±1%
|
||
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
THD（Typ.）@ full load |
<20% |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
Full Load Efficiency（Typ.） |
>83% |
>86% |
|
|
AC Current（Typ.） |
0.9A/110VAC |
||
|
Inrush Current（Typ.） |
14A, 50%, 780us |
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling.
|
|
|
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for60min.each along X,Y,Z axes |
||
|
Safety& EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
About 1.1Kg |
|
|
Size |
1.0 version: 188*92*26mm(L*W*H) / 2.0 version: 188*94.5*40mm(L*W*H) |
||
|
packing |
305*200*180mm / 10PCS/CTN （L*W*H） |
||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
||
 |
 |
 |
 |
■ Mechanical Specification
SMT-012-060VDH (1.0 version) SMT-012-060VDH (2.0 version)
SMT-024-060VDH (1.0 version) SMT-024-060VDH (2.0 version)
(Used in dry & damp Location) (Used in dry & damp & Wet Location)
Ø Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Ø Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Ø Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
■Dimming Operation
Ø Built-in 4 in 1 dimming function, IP20/ IP67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-
Ø Reference resistance value for output current adjustment (Typical)
|
Resistance value |
Signal driver |
0Ω |
10KΩ |
20KΩ |
30KΩ |
40KΩ |
50KΩ |
60KΩ |
70KΩ |
80KΩ |
90KΩ |
100KΩ |
OPEN |
|
Multiple drivers |
0Ω/N |
10KΩ/N |
20KΩ/N |
30KΩ/N |
40KΩ/N |
50KΩ/N |
60KΩ/N |
70KΩ/N |
80KΩ/N |
90KΩ/N |
100KΩ/N |
—— |
|
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |
|
Ø 1-10/0-10V dimmable function for output current adjustment(Typical)
|
Dimming value |
0V |
1V |
2V |
3V |
4V |
5V |
6V |
7V |
8V |
9V |
10V |
OPEN |
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |
Ø 10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ
|
Duty value |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
OPEN |
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |
■ Derating Curve
Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
■ Connecting solution:
Diagram 1 as below:
Diagram 2 as below:
■ Instruction:
Ø This driver should be installed by qualified and professional person;
Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;
Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-18016688251
Our official website: www.smarts-electronics.com & www.swinpower.com
Compatible Dimmer Type
SMT-012-060VDHV2 is ac dc led driver ul listed. Allowed to operate under free air convection. Provided short circuit,over current,over voltage,over temperatureproterciton to add safety. UstellarRGB led strip lights can be compatible.
Related Products
|
|

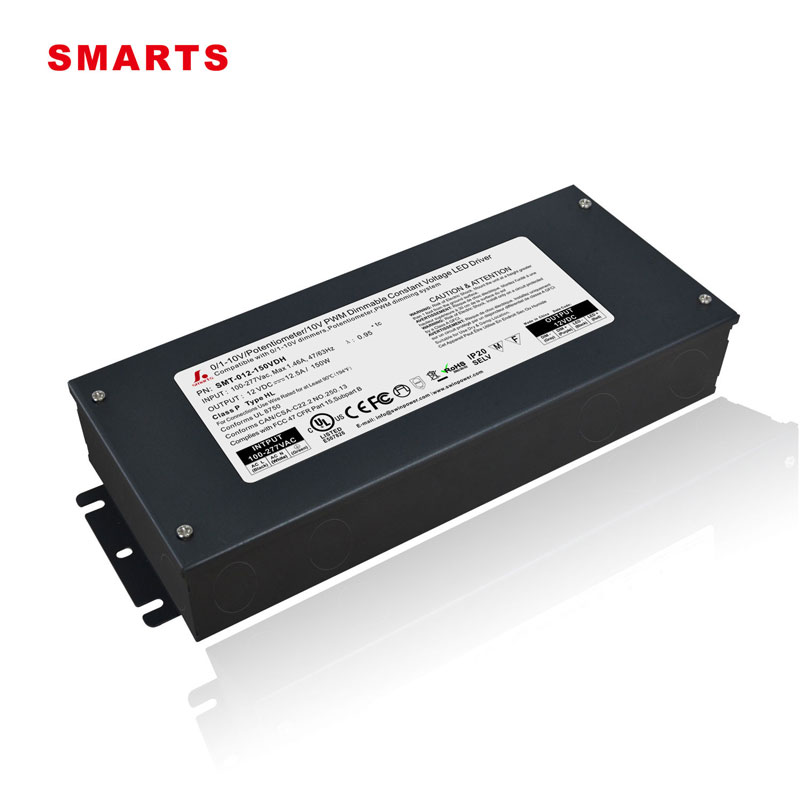

SMT-012-150VDH is a 2 in 1 type 12v dimmable led driver.150watt is offered. Indoor applicaiton is recommended. 7-year over-long quality guarantee period.
