UL certificate 277v 12 volt 5A 100W 0-10V dimmable power supply led driver
This SMT-012-100VDH is UL approved 12Vdc 100W 0-10V ac 277v power supply led driver. Which are CE,UL, RoHS,FC C,Class p, type HL aluminum IP20 non-waterproof version suitable for indoor use.has advantages over osram 100w led power supply in the certificate
Features of 277v power supply led driver
Output constant voltage type
·Range 100-305VAC , Typical: 100-277VAC
·Built-in PFC function PF>0.90
·Efficiency > 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP20 design for indoor or outdoor installations .
·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp locations
·7 years warranty
Specification of 277v power supply led driver
model
SMT-012-100VDH
SMT-024-096VDH
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Rated current
8.3A
4.0A (class 2 type)
Rated power
100W
96W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.98/110V , PF≧0.95/277V
Full Load Efficiency(Typ.)
>88%
>88%
>85%
>85%
AC Current（Typ.）
1.3A @110VAC
Leakage current
﹤0.5mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over voltage
≦140VAC(90~135V) , ≦270VAC(170~265V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.3Kg
Size
220*93*41mm (L*W*H)
packing
10PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

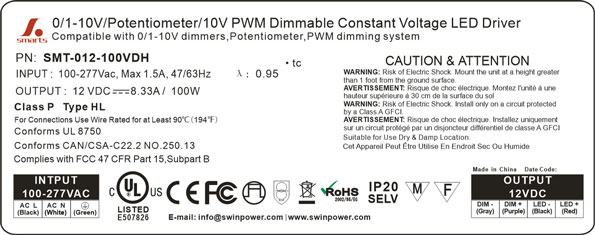

Label
Mechanical Specification
FAQ
Do all of these units have protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge?
Answers: Yes, all of those units have the protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge.
