wholesale ac dc dimmable led strip driver 12v 60w

Smarts Electronics is a member of Dali protocol.All products are certified by ETL, UL, CE, Rohs. our dali led driver 12v all compatible with products of Lutron, Tridonic, Dynalite, Clipsal, LDS, Osram, Philips, ABB, Schneider, Levition, JUNG, Berker, Be Lichtregler etc.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-060VM
  • Input Voltage:

    100-265Vac
  • Output Voltage:

    12Vdc
  • Output Current:

    0-5000mA
  • Working Mode:

    Constant Voltage
  • Dimming mode:

    DALI dimmable
  • Size:

    200*68*45mm
  • Certification:

    CE,ETL ,FCC,RoHS
Products description

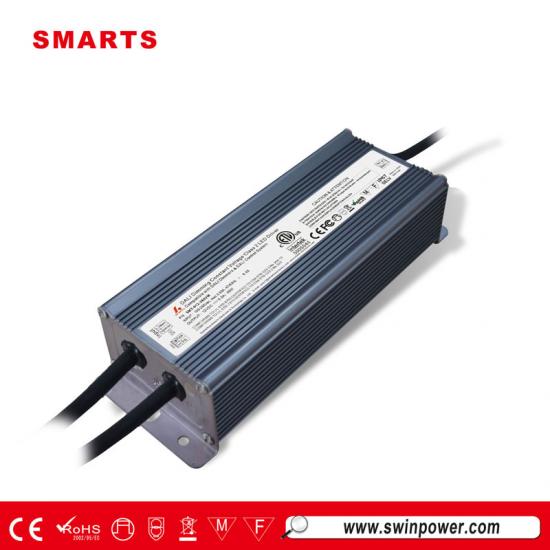

Wholesale ac dc dimmable led strip driver 12v 60w


SMT-012-060VM is the 12v dali led driver and complies with DALI standard protocol IEC 62386. This driver can be connected to DALI main controller or Touch DIM,Can be used with LUTRONXX CT-600PR-IV dimmer to achieve a smooth dimming effect.Over load protection; over voltage protection; short circuit ; Over temperature.


  Specifications


Model

SMT-012-060VM

 SMT-024-060VM

 SMT-036-060VM

SMT-048-060VM

Output

DC Voltage

12V

24V

36V

48V

Voltage Accuracy

±0.5V

Rated current

5.0A

2.5A

1.67A

1.25A

Rated power

60W

60W

60W

60W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.92/220V ; PF>0.95/220V

Full Load Efficiency(Typ.)

>88%

>88%

>88%

>88%

AC Current(Typ.)

0.960A

1.042A

1.031A

1.031A

Leakage current

<0.70mA/110VAC ; <0.75mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault conditionis removed

Waterproof rate

IP67

Over Current

<1.4*Iout

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)

Others

Weight

1Kg

Size

210*69*45mm(L*W*H)

packing

355*215*215mm/10pcs/CTN    220*70*50 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

  Label
ac dc dimmable led strip driver 12v 60w

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Mechanical Specification


12v dali led driver



~ Input Rubber cable  H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

~ Input with Live Wire(L)  Neutral Wire (N)

~ Output LED SEC (LED+),(LED-)

~ Signal Dimming (DA1), (DA2) DALI Non polar!



  Dimming Operation


~Connect DALI signal cable of driver with DALI cable in Control then dim after controller scan and assign address



  Derating Curve


  12v dali led driver

~Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life


  Description for our dali led driver 12v


12v dali led driver Dimming interface: DALI, Push DIM. - Dimming range from 0-100%, LED start at 0.1% possible.Dimming range from 0-100%, LED start at 0.1% possible.

12v dali led driver
12v dali led driver
