12v 30W slimline triac & 0 10v dimmable constant voltage led strip light driver
CE certified slim size triac & 0 10v dimmable led driver 12v 30W constant voltage output mode, dimming range is between 0~100%. With ultra-low load requirements, it can work perfectly under 10-100% load, with 7 years warranty
Specification
| model | SMT-012-030VTDSPH | SMT-024-030VTDSPH | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Tolerance | ±0.5 | ||
| Rated current | 2.5Amp | 1.25Amp | |
| Rated power | 30W | 30W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 200-240VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≥0.96/230VAC | ||
| THD(Typ. ) @ full load | < 20% | ||
| Full Load Efficiency(Typ.) | 79% | 78% | |
| AC Current(Typ.) | 0.25A | ||
| Inrush Current(Typ.) | 40.8A,50%,102us | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode,recovers automatically after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ | ||
| Protection Class | II | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | EN55015 EN61000-3-2 EN61000-3-3 | ||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Weight | 0.2Kg | |
| Size | 260*30*18.5mm(L*W*H) | ||
| packing | 330*275*130mm/ 50pcs /CTN G.W.: 11KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
 |
 |
 |
 |

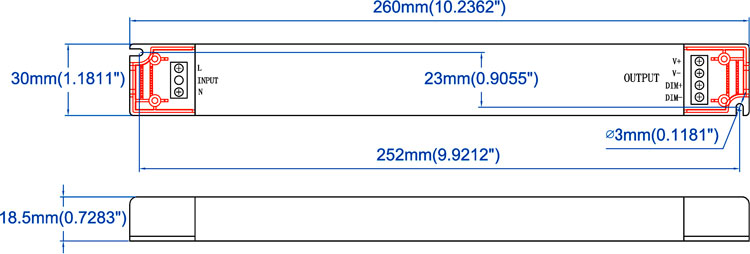

Mechanical Specification
Input terminals: (L) and (N) to connect to L and N of Mains AC
Output terminals: LED (+) to LED Positive side (+) , LED (-) to LED Negative side (-).
Dimming Terminal: DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) to 0/1-10V dimmer signal(-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming Operation
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Matching with leading edge and trailing edge Triac dimmer or lighting system.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
