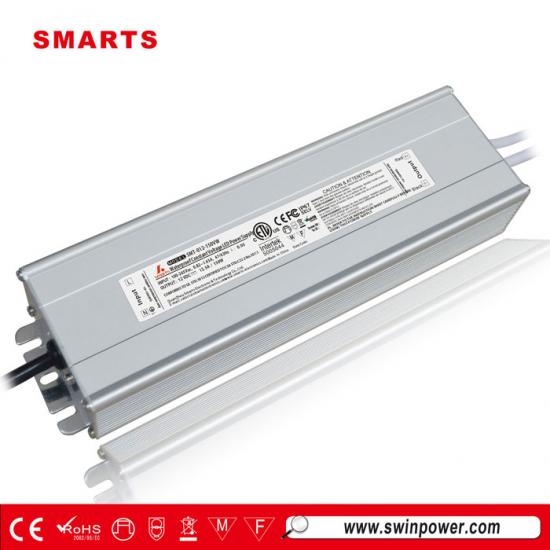

CE ETL 12V 150w led lighting transformer power supply
SMT-012-150VW is 12Vdc 150W led lighting transformer. High PF>0.95 high Efficienc y>0.88, 3 years warranty,can be used with TCPI's UFOUZDB250K.
|
Features of led lighting transformer：
● IP67 for indoor or outdoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through ETL,CE,RoHS Certification ●3 years warranty |
Specification of led lighting transformer
SPECIFICAION
MODEL
SMT-012-150VW
SMT-024-150VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
12.5A
6.25A
CURRENT RANGE
0~12.5A
0~6.25A
RATED POWER
150W
150W
RIPPLE&NOISE(max)
150mV
150mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/110VAC, 220VAC
HOLD UP TIME(Typ.)
60ms/110VAC, 220VAC
INPUT
VOLTAGE RANGE
100-265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
0.95
EFFICIENCY(Typ.)
﹥87%
﹥87%
﹥87%
﹥87%
AC CURRENT(Typ.)
1.85A/110VAC, 220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110VAC, 220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
CE ETL Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation. .
label
FAQ
Do light bulbs use AC or DC?
For light bulbs and heating elements, both AC and DC will work as long but the fact is that though all electric devices require direct current, alternating current is what is used to deliver electricity with the help of transformers which convert AC to DC for the use of electric devices.
