UL 277vac 12v 180w 0 10v dimming led driver for outdoor using

0 10v 12 volt led dimming driver built with junction box has the high output power but is also a kind of class 2 driver. It is popular in North American. the output current is 3*5A. it work well with Lotron DVSTV-WH dimmer after testing.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-180VDHJWV2
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc
  • Output Current:

    3*5A
  • Working Mode:

    constant voltage
  • Dimming mode:

    0-10v
  • Size:

    278*110*45mm
  • Certification:

    UL
Products description

UL 277vac 12v 180w 0 10v dimming led driver for outdoor using


This outdoor 12v power supply is 0 10v dimming mode. Can be dimmed from 0-100%. Buiding with junction box makes it more safer when installing. The characterictic of water resistance  enables it  can be used outdoors. Eaton DF10P-C1 dimmer is recommended.


  Specification



Model

SMT-012-180VDHJ (1.0 version)

SMT-012-180VDHJWV2 (2.0/3.0 ver.)





SMT-024-192VDHJ(1.0 version)

SMT-024-192VDHJWV2 (2.0/3.0 ver.)



Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2%

±1%

±1%



Rated current

3*5A

2*4A

Rated power

180W

192W

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@full load

0.99@120VAC  0.94@277VAC

0.99@120VAC  0.94@277VAC

THD(Typ.)@ full load

<20%

<20%

Efficiency(Typ.)@ full load

86%@120V   88%@277VAC

79%

87%@120V   89%@277VAC



AC Current(Max.)

2.2A@100VAC

2.3A@100VAC

Inrush Current(Typ.)

19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC

12.4A (twidth=430us) @277VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault conditionisremoved

Over Loading

≤120%  Hiccup mode ,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes









Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Weight

2.2Kg (1.0 version)

Size

1.0 version: 278*108*46mm (L*W*H)

2.0 version: 278*110*45mm (L*W*H)  / 3.0 ver.: 278*130*45mm (L*W*H)

packaging

Carton size: 340*250*245mm  /  10pcs /CTN    G.W.:24.80KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at110V/277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

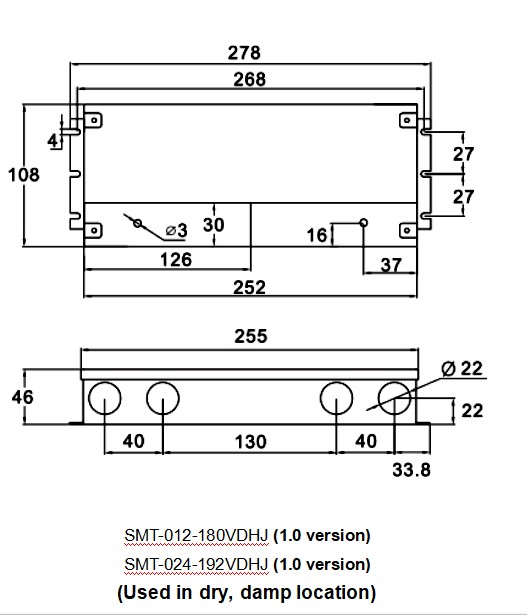

  ■Mechanical Specification



 outdoor 12v power supply



SMT-012-180VDHJ(1.0 version)

SMT-024-192VDHJ(1.0 version)

(Used in dry, damp location)

 outdoor 12v power supply



                                    SMT-012-180VDHJWV2(2.0/3.0 version)

                                    SMT-024-192VDHJWV2(2.0/3.0 version)

                                    (Used in dry, damp & wet location)



Ø Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,

Ø Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-).

Ø Three groups output cables. of  12V 180W and two groups of  24V  192W

Ø Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.



  ■Dimming Operation


Ø Built-in 4 in 1 dimming function, IP20 / I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-

Ø Reference resistance value for output current adjustment (Typical)

Resistance value

Signal driver

10KΩ

20KΩ

30KΩ

40KΩ

50KΩ

60KΩ

70KΩ

80KΩ

90KΩ

100KΩ

OPEN

Multiple drivers

0Ω/N

10KΩ/N

20KΩ/N

30KΩ/N

40KΩ/N

50KΩ/N

60KΩ/N

70KΩ/N

80KΩ/N

90KΩ/N

100KΩ/N

——

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

Ø 1-10/0-10V dimmable function for output current adjustment(Typical)

Dimming value

0V

1V

2V

3V

4V

5V

6V

7V

8V

9V

10V

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

Ø 10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ

Duty value

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%


  ■ Derating Curve


   outdoor 12v power supply

Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.



  ■ 0/1-10V / Potentiometer / 10V PWM (3 in 1) Dimmable LED Driver connecting solution:


Diagram 1 as below:

 outdoor 12v power supply



Diagram 2 as below:

outdoor 12v power supply



  ■ Instruction:


Ø This driver should be installed by qualified and professional person;

Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;

Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us:  sales9@smartselectronics.com  Or take a phonecall: 86 18016688251

Our official website:www.smarts-electronics.com   &  www.swinpower.com



  Compatible Dimmer Type


 SMT-012-180VDHJWV2 waterproof ip67 led driver transformer is a type of  0- 10V/1 10V/ Potentiometer/10V PWM 4 in 1. Wide input range 100-277VAC. Environmental lights Cabinet Light mod-t-sw40 can be compatible.
