UL approval 0 10v 80w dimmable class 2 led driver for led strip lights

Smarts 80w dimmable led driver is 12vdc and has  input voltage universal 100-277 volt. The LED driver is 0-10v dimmable.  The output current is 6.66A with 80 watt maximum output power.CE,UL,RoHS,FCC approval. Connected with led lights,Nilight 5Inch  LED Light Bar is suitable.

  • Brand:

    SMARTS
  • Item No.:

    SMT-012-080VDHV2
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc;24vdc
  • Output Current:

    6.66A; 3.33A
  • Working Mode:

    constant voltage
  • Dimming mode:

    0-10v dimming
  • Size:

    220*94.5*40mm
  • Certification:

    CE,UL,RoHS,FCC approval
Products description

UL approval 0 10v 80w dimmable constant voltage  led driver for led strip lights


Smarts 0 10 volt led drivers built-in PFC function. Power factor over 0.95 and effiency over 0.86.Using 0-10V/ 1-10V/ 10VPWM signal. After testing, Eaton dimmer DF10P-C1 is compatible.


  Specification



model

SMT-012-080VDH (1.0 version)

SMT-012-080VDHV2 (2.0 version)

SMT-024-080VDH (1.0 version)

SMT-024-080VDHV2 (2.0 version)

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

6.66A

3.33A (class 2 type)

Rated power

80W

80W

Input

Voltage Range

100~277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.95/110V ,PF≧0.95/277V

THD(Typ.)@ full load

<20%

Full Load Efficiency(Typ.)

86%@120VAC   88%@277VAC

>85%

AC Current(Typ.)

1.3A @110VAC

Inrush Current(Typ.)

18A, 50%, 1.6ms

1.0A/120VAC  0.63A/170VAC 0.50A/220VAC 0.41A/277VAC

Leakage current

﹤0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault conditionisremoved

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

1.3Kg (1.0 version)

Size

1.0 version:220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm(L*W*H)

packing

330*280*176mm  /  10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

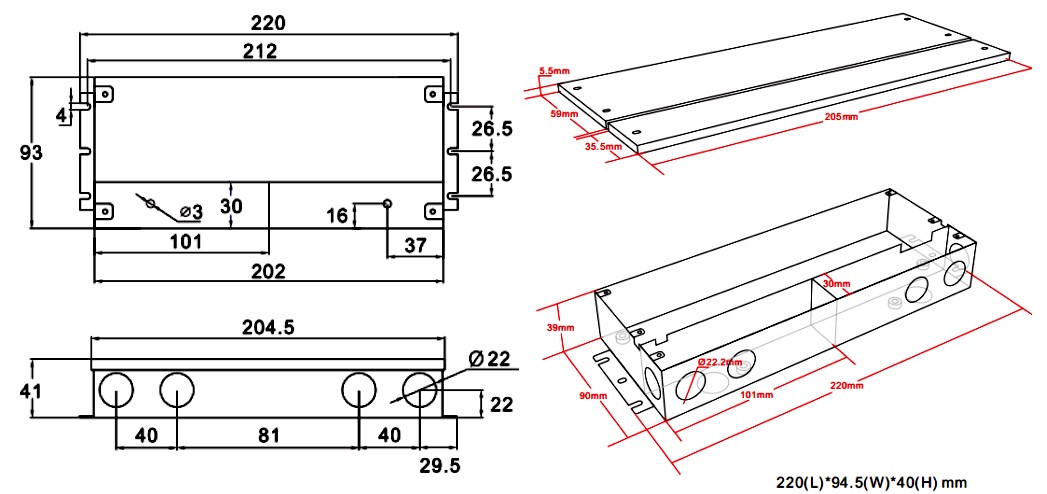

  ■ Mechanical Specification:


 0 10 volt led drivers



SMT-012-080VDH (1.0 version)                             SMT-012-080VDHV2  (2.0 version)

SMT-024-080VDH (1.0 version)                             SMT-024-080VDHV2  (2.0 version)

 (Used in dry & damp Location)                           (Used in dry & damp & Wet Location)



Ø Input wire Black and White to be connected to AC L and N ,Green wire go ground,

Ø Output wire Red to LED Positive side (+) , Black  to LED Negative side (-).

Ø Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.



  ■ Dimming Operation


Ø Built-in 3 in 1 dimming function, IP20, IP67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-

Ø Reference resistance value for output current adjustment (Typical)

Ø

Resistance value

Signal driver

10KΩ

20KΩ

30KΩ

40KΩ

50KΩ

60KΩ

70KΩ

80KΩ

90KΩ

100KΩ

OPEN

Multiple drivers

0Ω/N

10KΩ/N

20KΩ/N

30KΩ/N

40KΩ/N

50KΩ/N

60KΩ/N

70KΩ/N

80KΩ/N

90KΩ/N

100KΩ/N

——

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

Ø 1-10/0-10V dimmable function for output current adjustment(Typical)

Dimming value

0V

1V

2V

3V

4V

5V

6V

7V

8V

9V

10V

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

Ø 10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ

Duty value

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%


  ■Derating Curve


   0 10 volt led drivers



Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.



  ■ connecting solution


Diagram 1 as below:



 0 10 volt led drivers



Diagram 2 as below:

 0 10 volt led drivers



  ■ Instruction:


Ø This driver should be installed by qualified and professional person;

Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;

Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com  Or take a phonecall: 0086 18016688251

Our official website: www.smarts-electronics.com   &  www.swinpower.com




  Compatible Dimmer Type


Smarts SMT-012-080VDHV2 is led 12 volt driver dimmable.Using for indoors and outdoors applicaiton. Using 0-10v to achieve continuous dimmng. UL,CE,ROHS,FCC certificaitons ensures high safety performance. Coxotech led neon light could be NA1023-120 could be matched in principle.
